DC Fast Charger

Wall-mounted 30kW 40kW DC Charger for Commercial Charging

The IOCDW25 30kW 40kW DC EV Charger features a compact, space-efficient design and delivers up to 40kW of DC fast charging for commercial and destination charging applications. Its flexible wall-mounted or pedestal configuration enables easy deployment while making efficient use of available space. It is an ideal solution for a wide range of commercial and space-constrained charging locations.

Input Rating: 3-phase 400V±15% AC
Max DC output power: 30kW/ 40kW
Output DC voltage range: 150V-1000V DC
Display: 7 ” CTP Touch Screen LCD
Network Interface: Ethernet/4G smart internet connection
OCPP: OCPP 1.6J/ OCPP 2.0.1 full profiles support
ISO15118 Plug&Charge: Upgradable
Ingress Protection: IP55
Charging Interface: CCS1, CCS2, CHAdeMO, GB/T
Dimension: 670*690*325mm

Main Features:

Up to 40kW fast charging
CCS 1/ CCS 2/ CHAdeMO/ GB-T charging connector
ISO15118 Plug&Charge
7’’ CTP touch screen & user-friendly interface easy to operate
Fits standard 63A circuits -no power upgrades
POS payment integrated
Eco-friendly with Solar & Battery
Embedded RFID card reader for user authentication
IP65 independent air-duct cooling power module for maintenance-free operation
Full OCPP 1.6J & OCPP 2.0.1 profiles support

Compact Design & Flexible Deployment

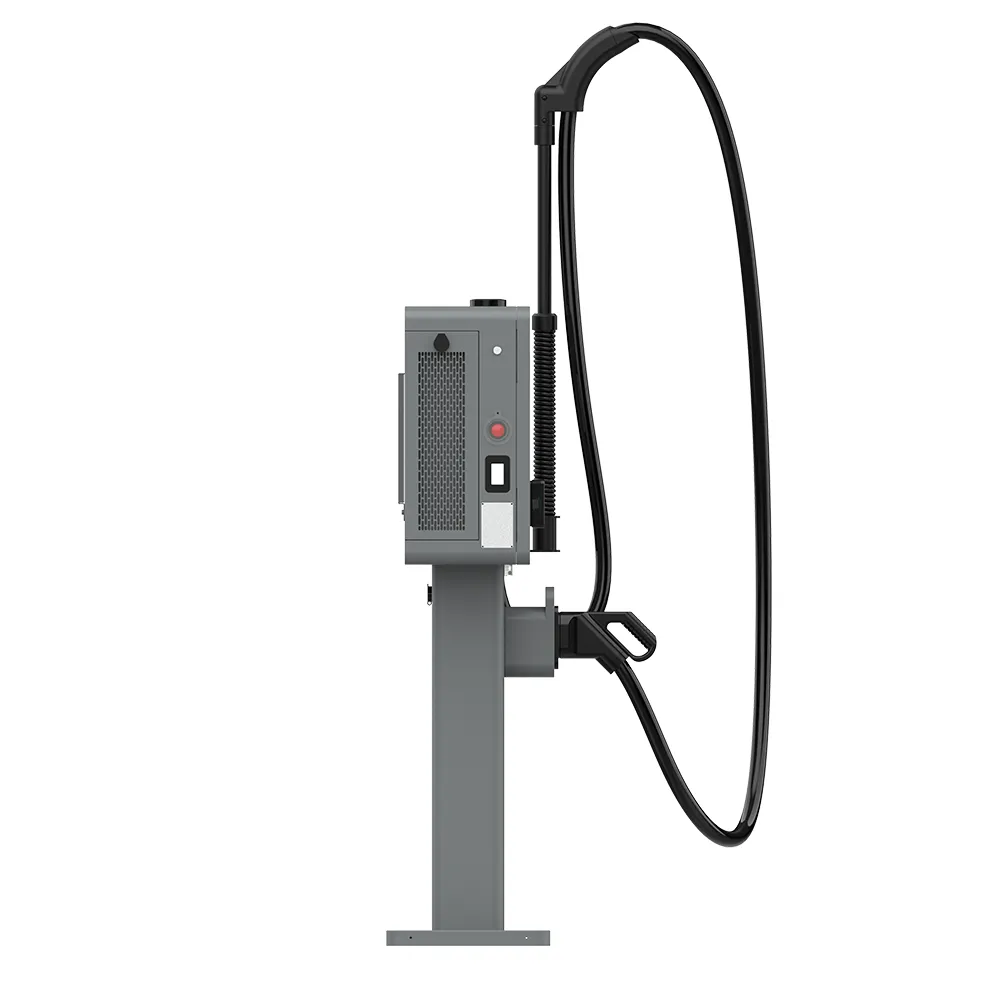

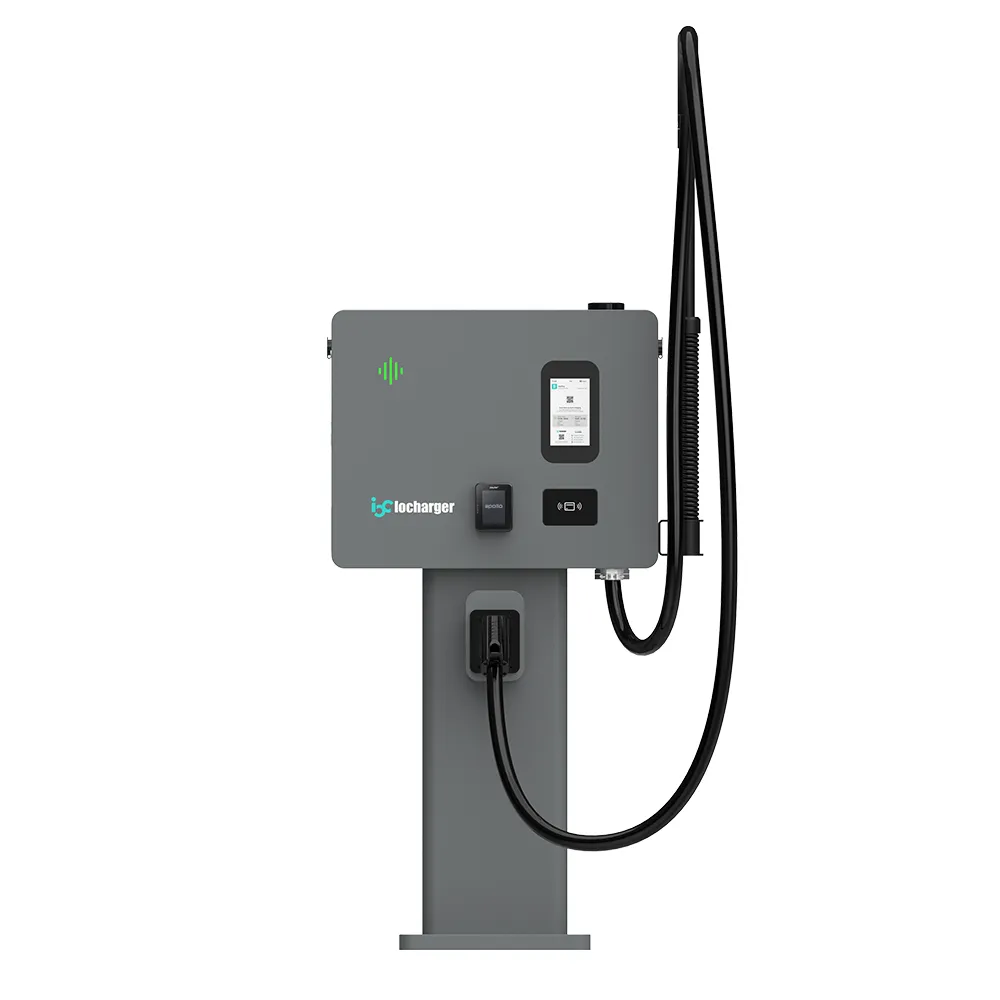

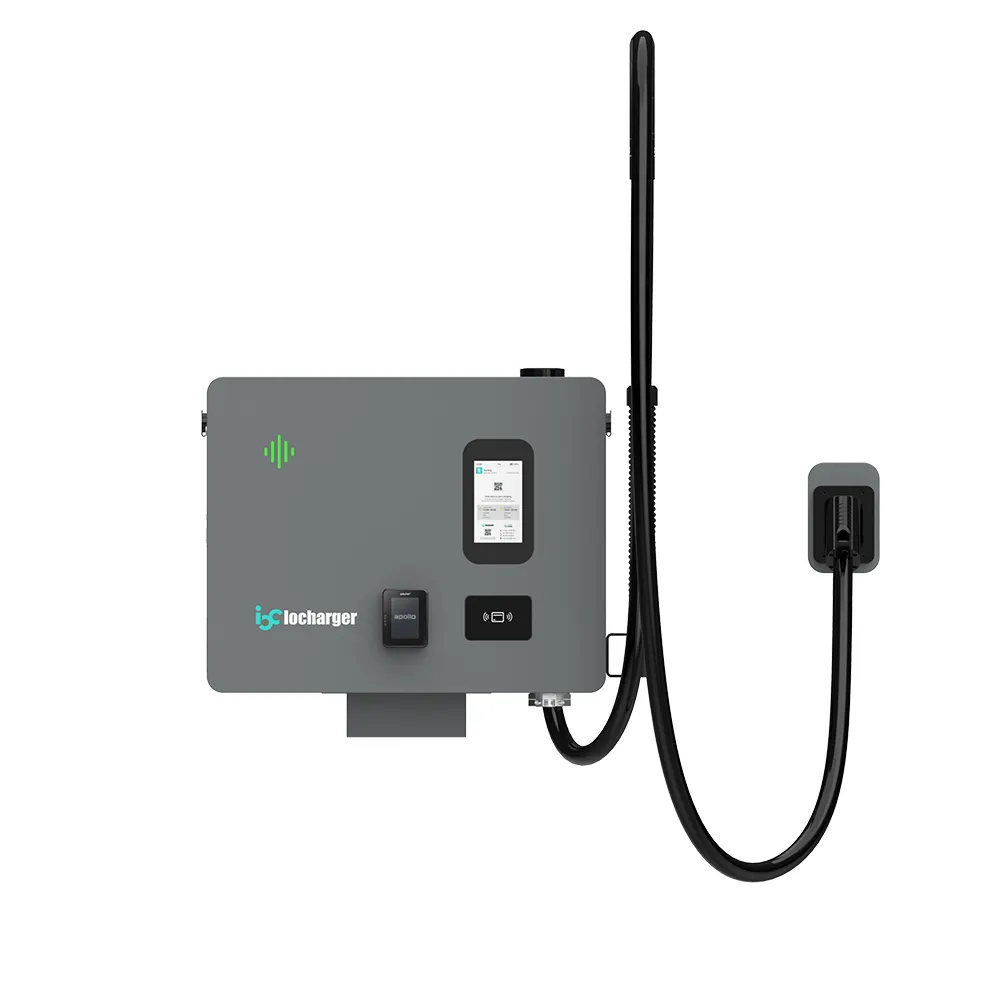

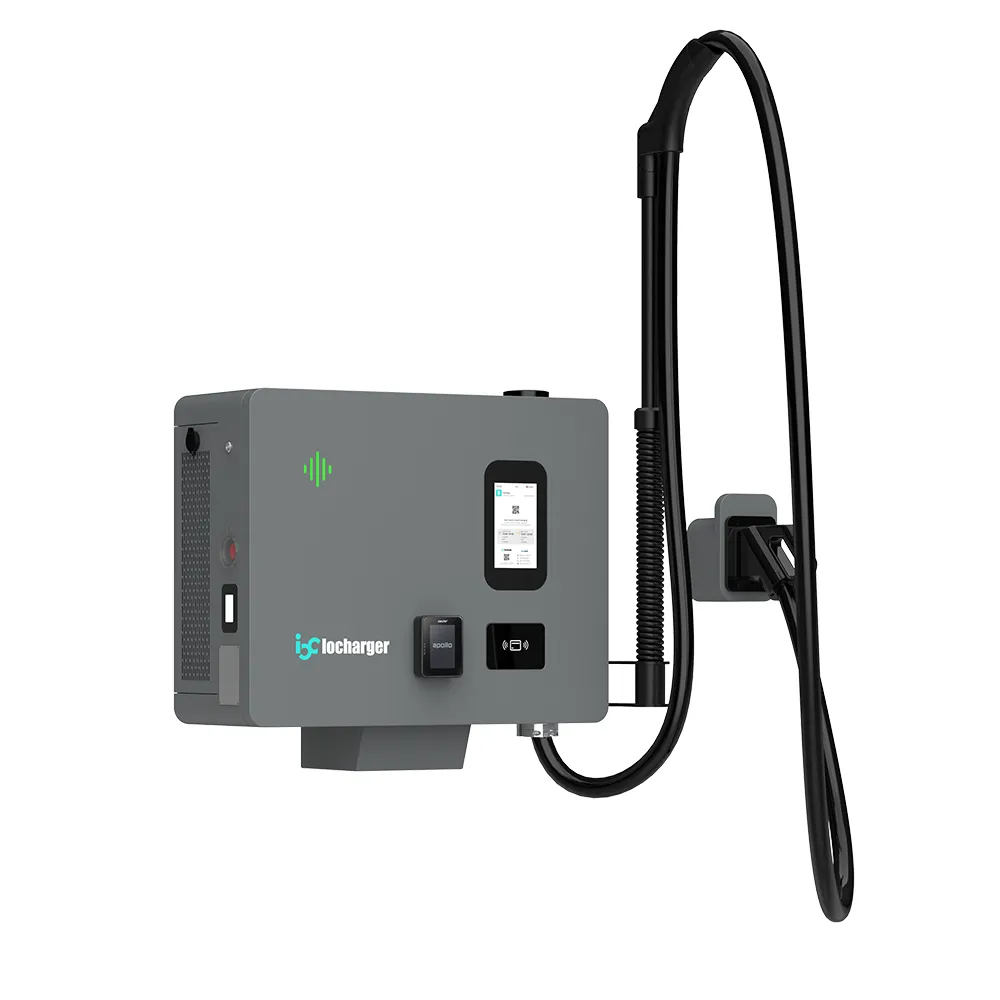

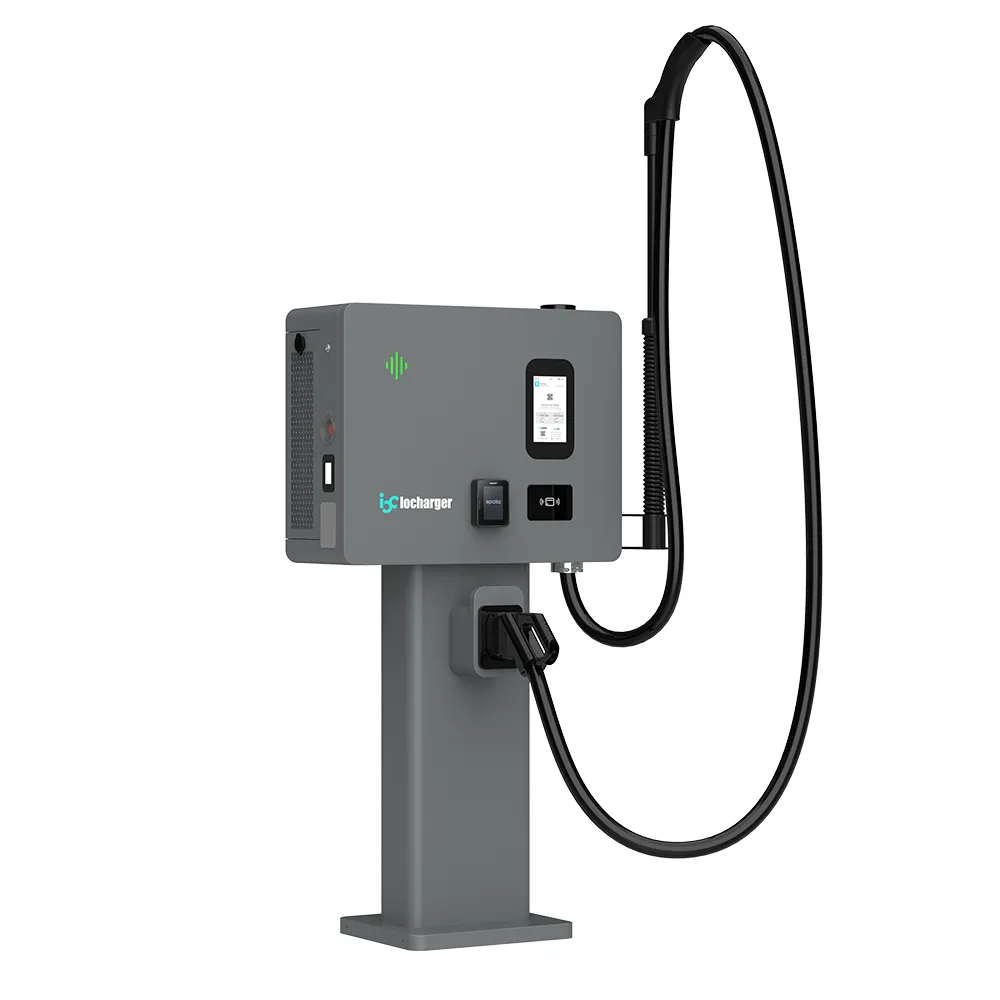

Delivering up to 40kW of DC fast charging in a compact wall-mounted form factor, the IOCDW25 makes efficient use of valuable site space without compromising charging performance. Its flexible wall-mounted or pedestal installation enables easy deployment in parking lots, hotels, offices, residential areas, and other space-constrained locations.

Perfectly Matched with 63A Power Systems

The IOCDW25 can be seamlessly integrated with 63A power systems, making it an ideal solution for sites where available electrical capacity is limited. Built-in dynamic load balancing intelligently distributes available power according to site conditions, helping maximize charging availability while reducing the need for costly electrical infrastructure upgrades.

Independent Air-Duct Cooling for Enhanced Reliability

It features 40kW IP65-rated power modules with independent air-duct cooling, keeping the cooling airflow separate from critical electrical components to help protect them from dust and heat. This dedicated cooling architecture enhances thermal management and supports stable operation under demanding charging conditions. The power modules provide constant power output across a wide 300V-1000V voltage range and incorporate multiple protection mechanisms for enhanced operational safety. A 5-year module warranty provides additional assurance for long-term operation, while the maintenance-free cooling design helps minimize routine maintenance.

Intelligent Remote O&M for Faster Service

Intelligent remote O&M enables real-time monitoring and efficient management of charger operation. Automatic emergency-stop recovery, remote fault reset, and OTA upgrades allow common operational issues and software updates to be handled remotely, while many non-hardware-related faults can be resolved without on-site intervention. This helps shorten service response times, minimize downtime, and improve overall O&M efficiency.

Seamless Connectivity & Convenient Payment

Supporting OCPP 1.6J and OCPP 2.0.1, as well as ISO15118 Plug&Charge, the IOCDW25 integrates smoothly with third-party charging platforms for remote monitoring, operation, and management. Multiple payment options, including RFID, contactless payment, and optional POS, provide drivers with a simple and flexible charging experience, making the charger well suited for a wide range of commercial and public charging scenarios.
