iocharger

Szybka ładowarka DC

Zgodność z OCPP 1.6J OCPP 2.0.1 60 kW 120 kW CCS-2 + CHAdeMO + 22 kW Typ 2 AC i DC Combo

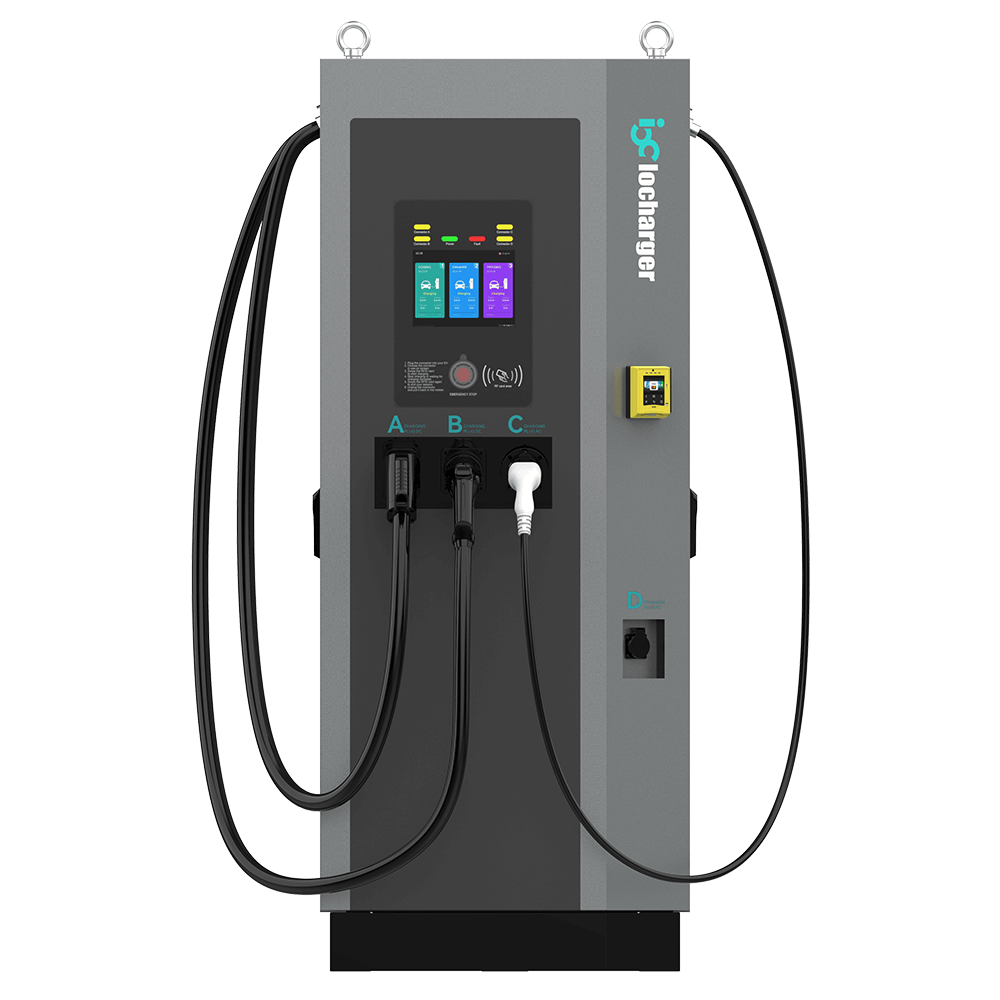

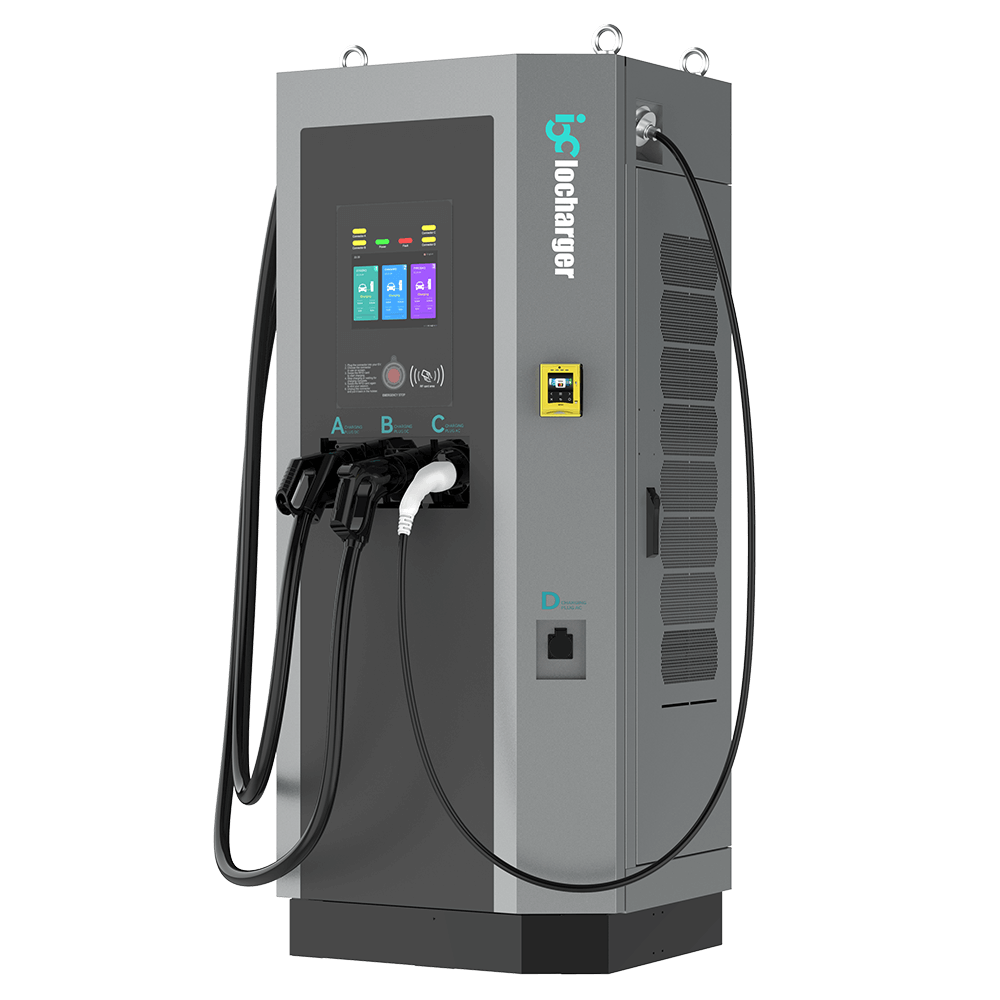

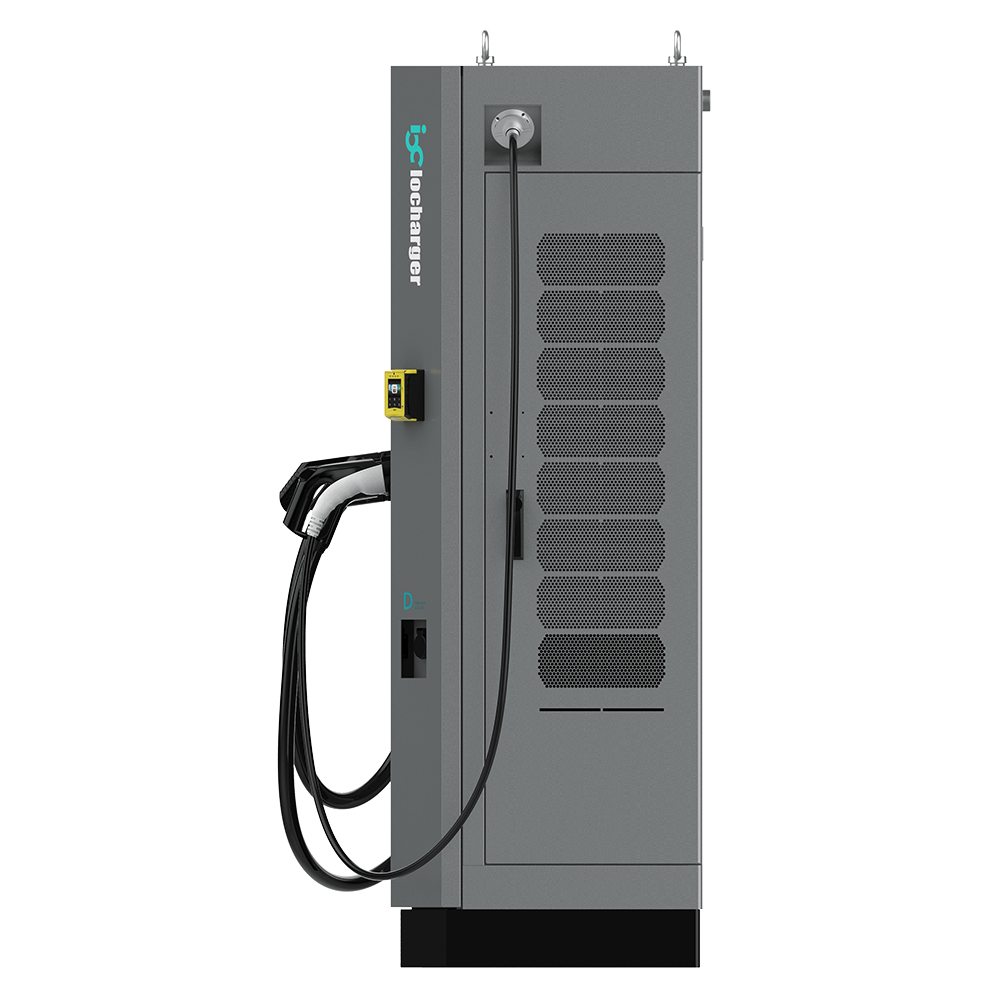

IOCHY3  has an output power up to 120kW with DC CCS-2 + CHAdeMO + 22kW AC Type-2 + 3.6kW Schuko outputs , which is widely used for electric bus charging. Friendly user interface with 4G/ Wi-Fi/ Ethernet communication and RFID card reader, TUV & CE certified.
  • AC Voltage: 3-phase 400V±15% AC
  • Max DC output power: DC 60kW+AC 22kW/ DC 120kW+AC 22kW
  • Zakres napięcia wyjściowego DC: 150V-1000V DC
  • Wyświetlacz: 8” Dotykowy ekran LCD TFT
  • Interfejs sieciowy: Ethernet/WiFi/4G – inteligentne połączenie internetowe
  • OCPP: Pełna obsługa OCPP 1.6J/ OCPP 2.0.1
  • ISO15118 Plug&Charge: możliwość aktualizacji
  • Stopień ochrony: IP54
  • Shipping Dimensions: 2017 x 1100 x 1000 mm
  • Charging Interface: 1 CCS+ 1 CHAdeMO+ 1 AC Type-2 cable + 1 SCHUKO
  • Typ montażu: Podłoga

As the popularization of electric vehicles, people are more likely to drive their EVs on the road for cost saving and environment friendly purposes. Diversified charging demands become inevitably. Some people require fastest charging speed for time saving, and some people want to enjoy a cup of coffee while charging. An all-in-one charging station is now required. IOCHY3 is designed especially for such demands.

ev charger triple plug
3 plugs ev charger

Główne cechy:

  • Supporting CCS, CHAdeMO and Type 2 AC charging
  • 22kW or 43 kW AC charging connector
  • ISO 15118 Plug & Charge
  • Obsługa wielu języków
  • Czytelny w świetle dziennym ekran dotykowy
  • Autoryzacja RFID
  • Kod PIN (OTP)
  • Wytrzymała, odporna na warunki atmosferyczne obudowa ze stali nierdzewnej
  • Szybka i łatwa instalacja

Zgodność z najnowszą wersją OCPP

With its fully compliance of OCPP 1.6J and OCPP 2.0 profiles, IOCHY3 is easily to connect to any OCPP based backend.

Various means of payment

IOCHY3 supports multiple wireless payment platforms to meet various payment requirements. Physical credit card payment module is also scalable on IOCHY3.

all in one ev charger

Harmonijne komercyjne ładowanie pojazdów elektrycznych

Dynamic load management is supported on IOCHY3 as well. If the station is using hybrid grid including solar energy storage system, IOCHY3 can work with it harmoniously with iocharger’s latest technology.
