iocharger

Carregador de veículos eléctricos comercial

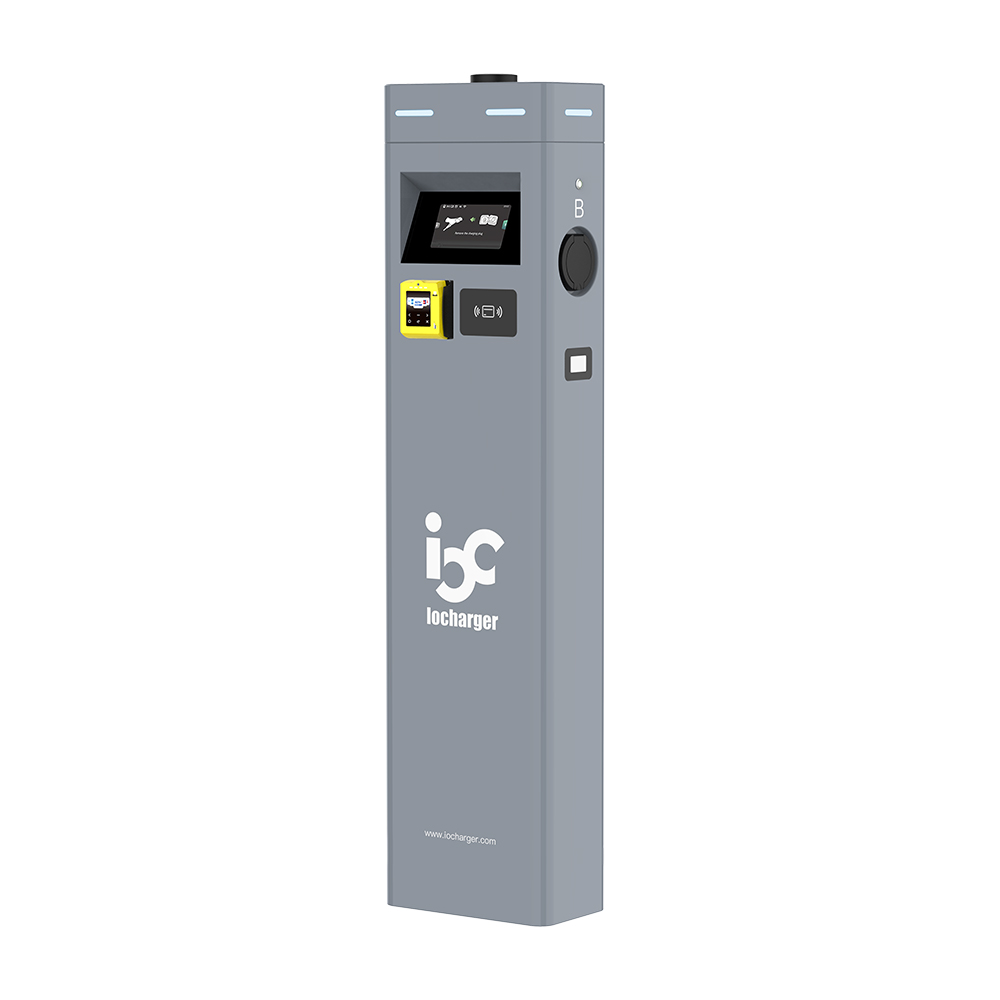

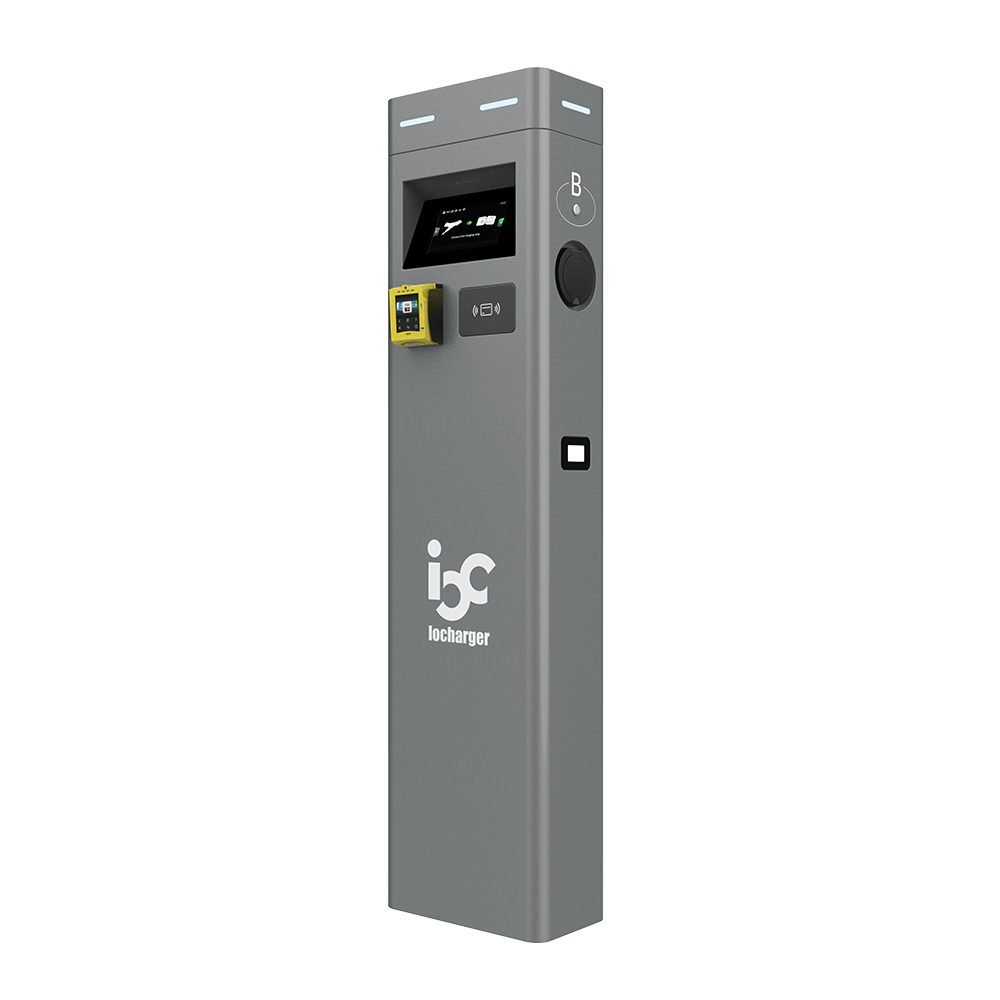

Carregador público para veículos elétricos Plug&Charge compatível com OCPP 2.0.1. Aceita pagamentos com cartão de crédito através de terminal POS.

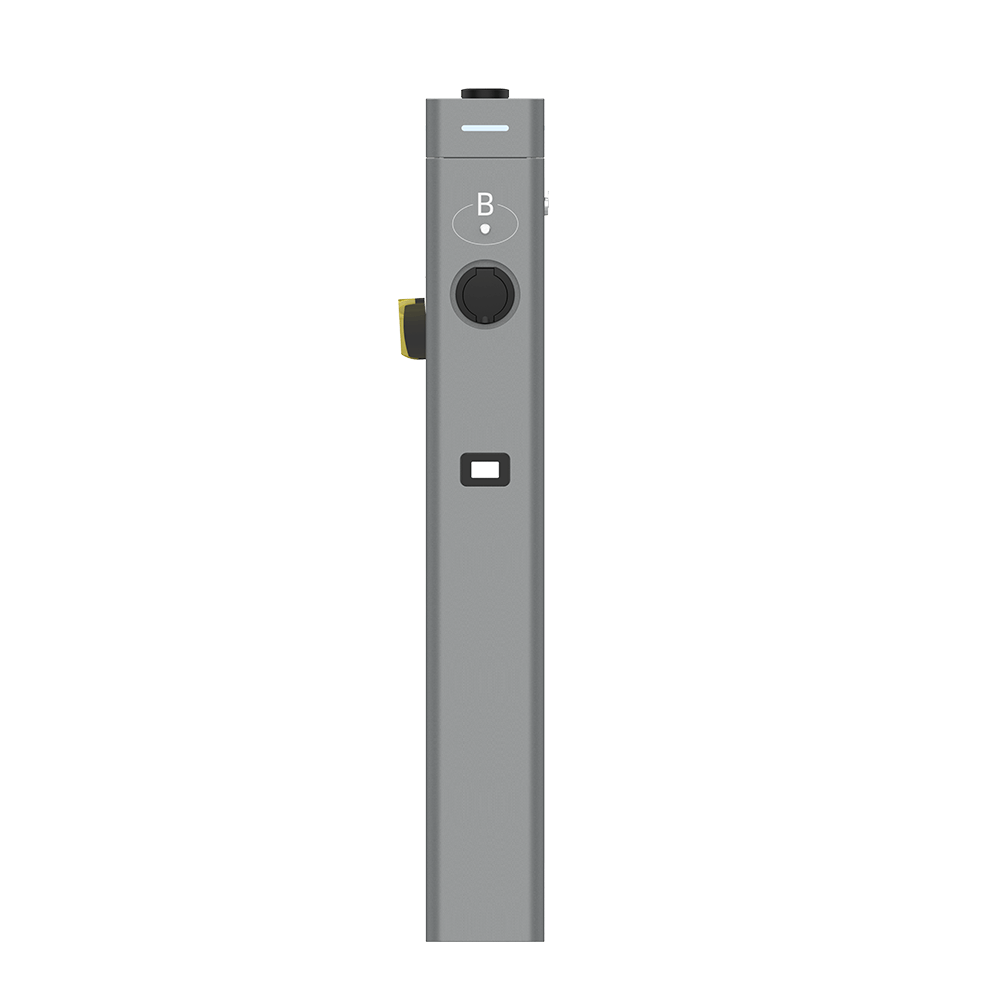

IOCAP26 is a great charger for outdoor public charging. Each charging connector can output maximum 22kW power at the same time.
  • Classificação de entrada: 1-fase 230V±20% ; 3-fase 400V±20%
  • Classificação de saída: 1-fase 2 x 7kW 32A; 3-fase 2 x 22kW 32A
  • RCD interno: 2 x RCCB tipo B
  • Display: 7” LCD
  • Medidor: 2 x medidor MID

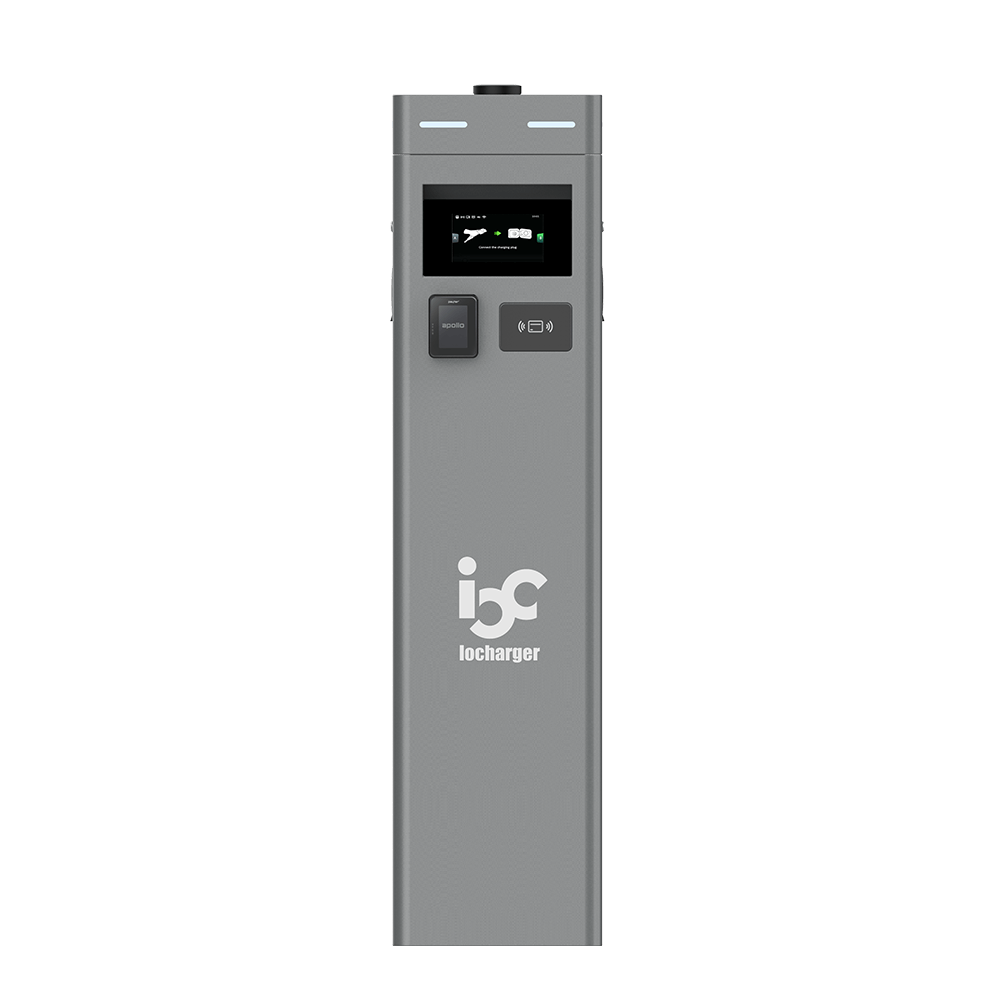

  • Certificado: CE, PTB (Eichrecht)
  • Interface de rede: Ethernet/ WiFi/ Ligação à Internet inteligente 4G
  • OCPP: Suporte completo para OCPP 1.6J/ OCPP 2.0.1
  • Proteção contra a entrada: IP55
  • Shipping Dimensions: 1530 x 450 x 320 mm
  • Interface de carregamento: Cabo SAE J1772 e Tipo-2/ Tomada Tipo-2/ Tomada T2S com obturador

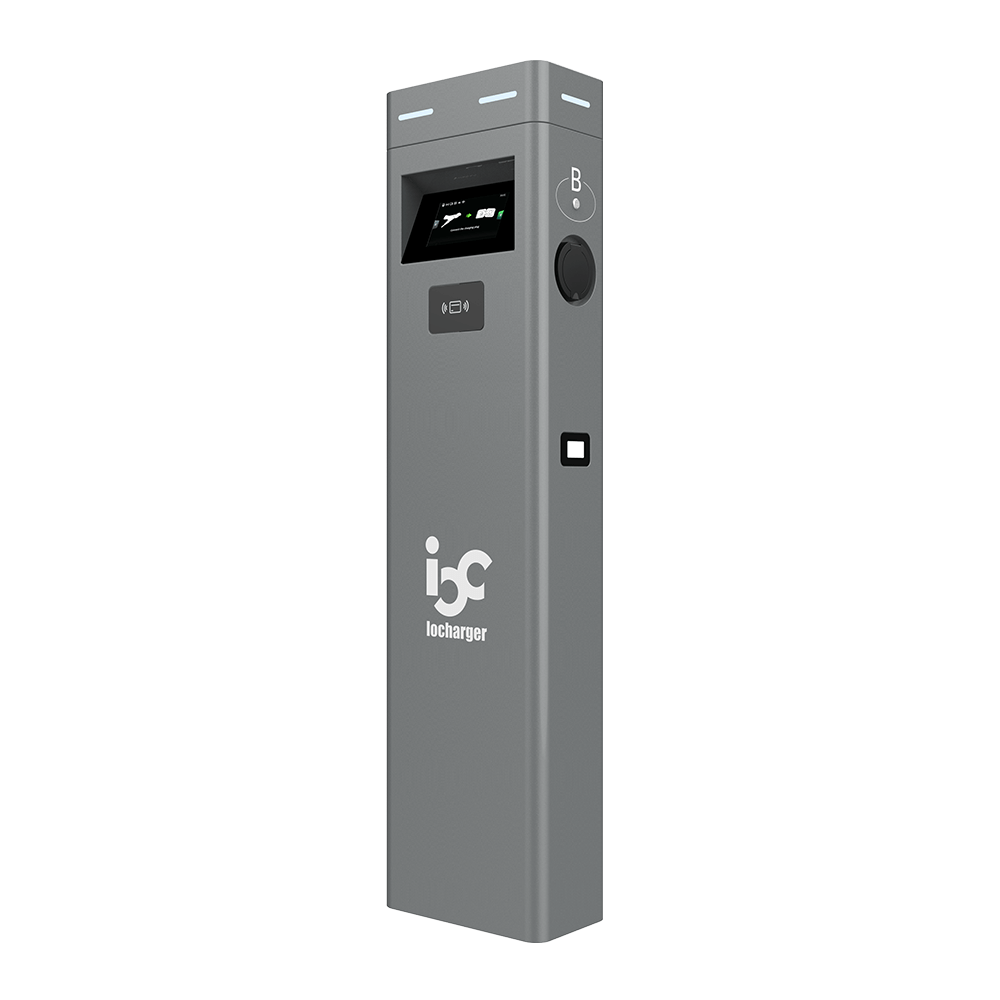

  • Tipo de montagem: Chão

O IOCAP26 foi especialmente concebido para fins de carregamento comercial. A elevada resistência à água e ao pó com classificação de proteção IP55 e IK10 torna-o perfeito para locais de carregamento no exterior, como estações de serviço, parques de estacionamento, esquinas, etc.

Caraterísticas principais:

  • Configuração flexível da corrente/potência de saída
  • Dual Independent power control with the connectors
  • 2x Type-B RCCB
  • 2x MID Meter inside
  • Smart Network Connectivity Ethernet, Wi-Fi, Celluar
  • User authentication via RFID or Mobile App
  • Portal Web de fácil utilização para configuração do carregador
  • Dynamic Load Management Support up to 252 pcs
  • POS terminal installation support
  • Janela separada de leitura do contador MID
  • Breathing light, Cascade connection for internet sharing

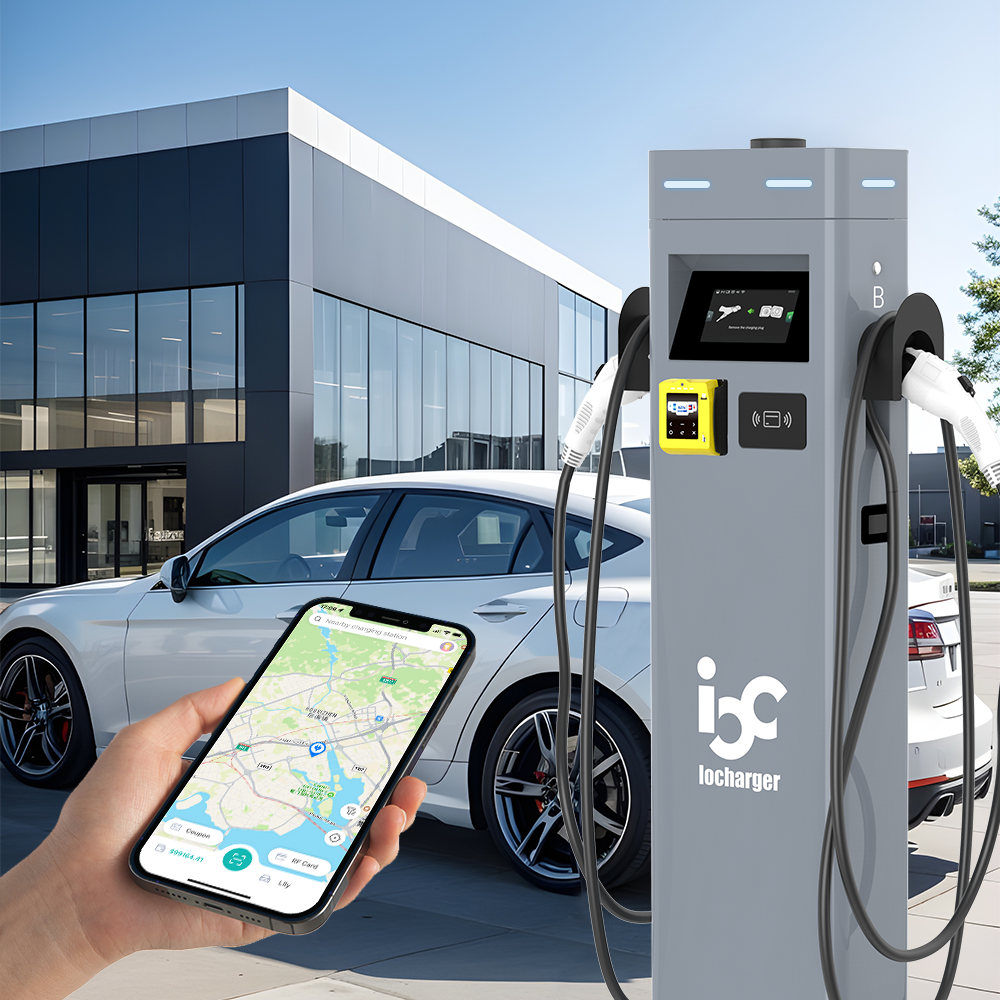

22kw ev charger with pos terminal

Integrate POS termial payment

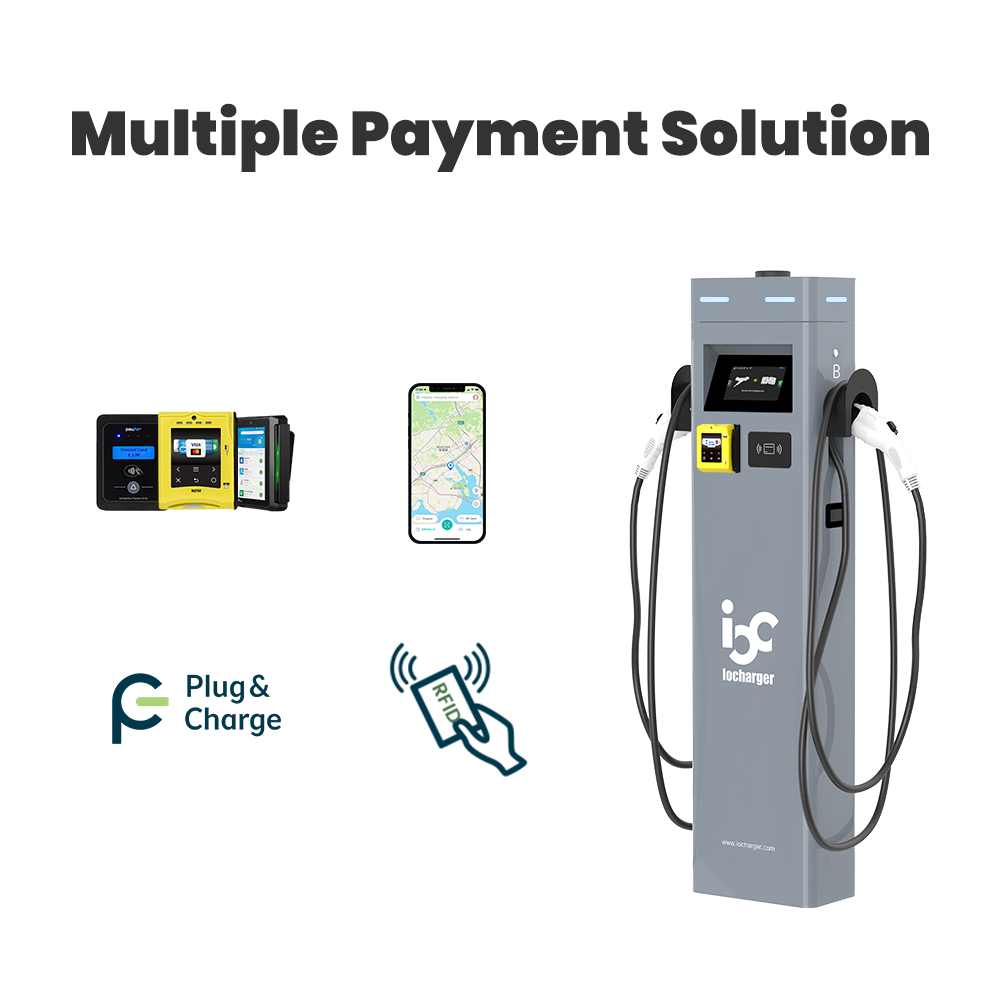

IOCAP26 has integrated our latest POS terminal payment technology to maximize the user charging experience in public, workplace, commercial parking, gas stations etc. We provide a complete payment solution which including:

  •  POS terminal on AC&DC Charger or separate installation
  •  Local offline POS payment
  • Online POS payment integration with OCPP backend
  • Single POS terminal supporting multiple EV Charger connections
  • Nayax, Payter terminal

It is a perfect and complete solution for your business, providing you with easy operation, monitoring, management, and cashless payment acceptance.

Charge two cars simultaneously

Two charging connectors allow IOCAP26 can charge 2 cars simultaneously. Independent power input design makes each Type-2 socket working separately without interfering, and each Type-2 socket can output maximum 22kW power at the same time for the quick charging.

Fully OCPP compliant

As a member of OCA(OCPP) & OCPI, our EV chargers are always up to date with the latest OCPP protocol. OCPP 1.6J, OCPP 2.0.1 are now fully compliant, allowing our chargers to work harmoniously with any OCPP based platform.

Balanceamento dinâmico de carga

Load balancing feature of IOCAP26 makes it perfect for commercial charging. It dynamically adjusts the power between the charging stations based on the power situation in real time, to make sure black out never happen because of overload.
