iocharger

Caricatore EV domestico

Livello 2 32A Fast Fino a 22 kW Stazione di ricarica domestica di base per veicoli elettrici

The charger for you who prefer easy and safe charging. Just plug in your car and we will do the rest!
  • Valutazione d'ingresso: monofase 230V±20%; trifase 400V±20%
  • Potenza nominale: Monofase 7kW 32A; Trifase 22kW 32A
  • RCD interno: 30mA AC e 6mA DC Certificato IEC62955 e IEC61008
  • Ingress Protection:  IP55
  • Shipping Dimensions: 500 x 383 x 198 mm; 500 x 383 x 243 mm
  • Interfaccia di ricarica: Cavo SAE J1772 e Tipo-2/ Presa Tipo-2/ Presa T2S con otturatore

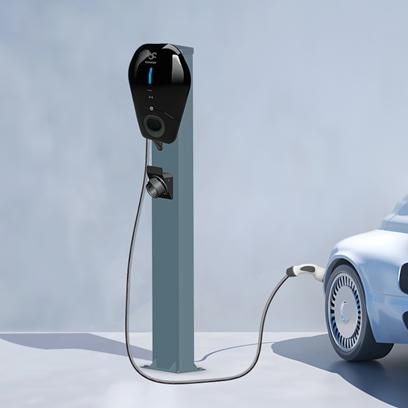

  • Tipo di montaggio: Parete o pavimento (piedistallo fornito separatamente)

Simple and safe EV charger for home

The charger for you who prefer simple and safe charging. Any EV driver can recharge their car battery by simply plugging the charging connector.

Caratteristiche principali:

  • Compatible with all cars
  • 1-Phase 7kW & 3-Phase 22kW available
  • Both socket & tethered version available
  • Simple ‘Just Plug and Play’ operation

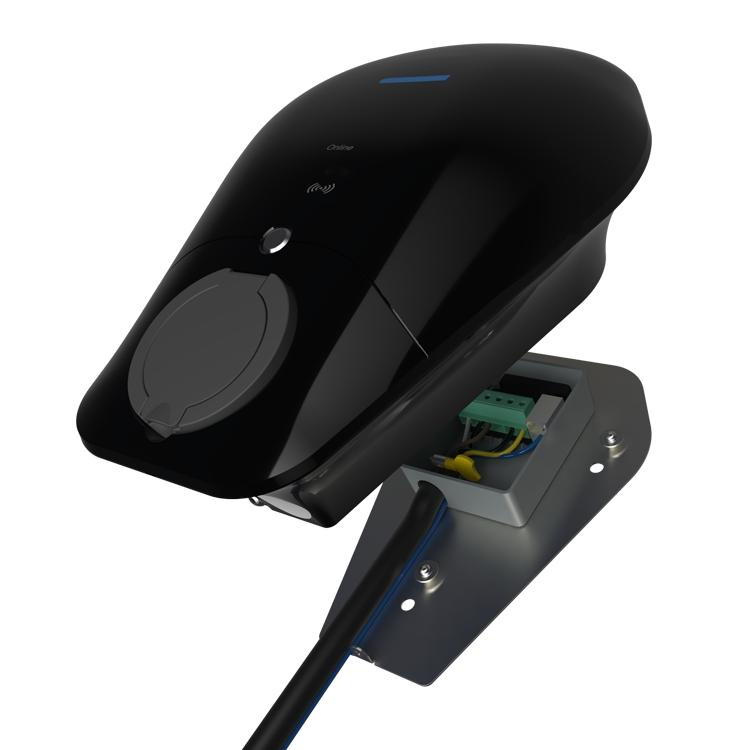

  • Unique installation design with independent backplate
  • Design aerodinamico, aspetto semplice ed elegante
  • Protezione da dispersione di corrente AC 30mA e DC 6mA Certificazione IEC62955 e IEC61008

Make life safer

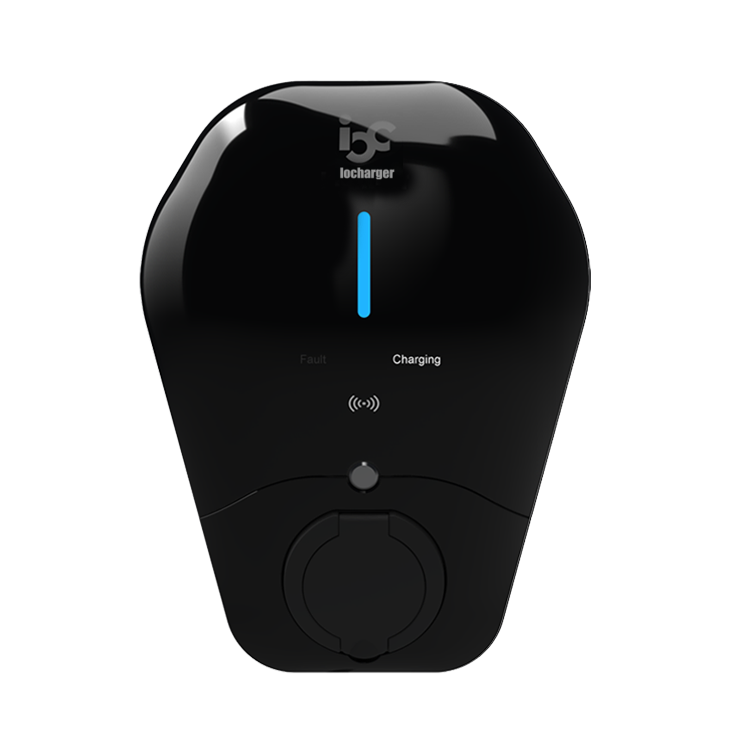

IOCAH10-N is a simple yet functional electric vehicle charger. Users don’t need to think about complicated configuration or installation and can always trust it’s reliability.

IOCAH10-N also supports dynamic load balancing to protect local grid network from overloading and ensure the most efficient use of the available power between EV Chargers and other home appliances. Iocharger load management hub “IOCLMP” is required to connect to IOCAH10-N charger by RS485 wire for the communication. CT connecting to IOCLMP would measure real-time electrical usage, thus to output the maximum current available for EV charging.

Make life easier

Just plug in your car and we will do the rest! You can start/stop the charging session via RFID card or charger physical button. We guarantee its safety and simplicity so that you can fully enjoy your charging experience without other measures.
