iocharger

Cargador EV doméstico

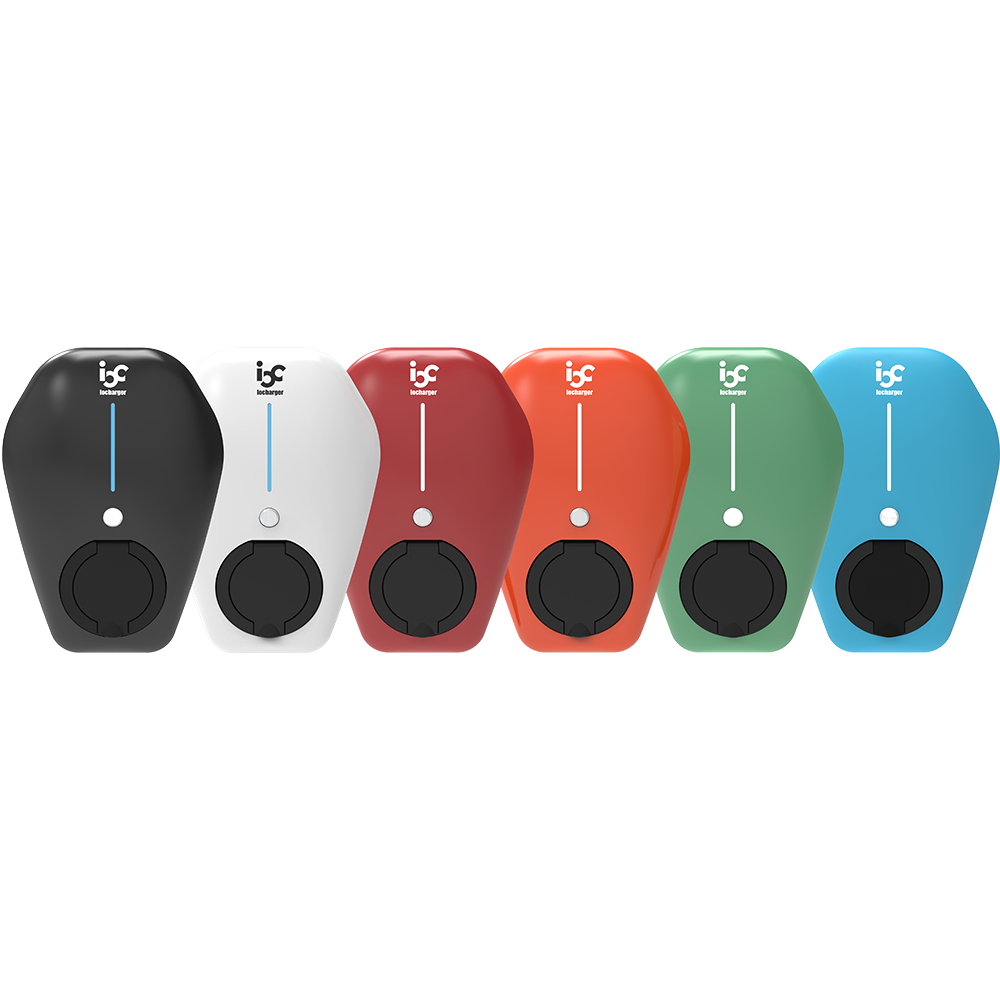

Varios colores 7 kW 11 kW 22 kW OCPP 1.6J y 2.0.1 compatible con WiFi y Bluetooth Mini cargador inteligente para vehículos eléctricos

The smallest and most stylish EV charger for home charging, dynamic power distribution to make sure of a safe and effective network for EV chargers, solar, grid system and energy storage systems.
  • Potencia nominal de entrada: monofásica 230 V ± 201 TP3T; trifásica 400 V ± 201 TP3T
  • Output Rating: 1-phase 7kW 32A ; 3-phase 11kW 16A ; 3-phase 22kW 32A
  • RCD interno: CA 30 mA y CC 6 mA Certificado según IEC62955 e IEC61008
  • Network Interface: Ethernet/ WiFi/ Bluetooth smart internet connection
  • OCPP: Compatibilidad total con OCPP 1.6J/ OCPP 2.0.1
  • ISO15118 Plug&Charge: actualizable
  • Protección contra la entrada de agua y polvo: IP55
  • Shipping Dimensions: 398 x 285 x 176 mm; 398 x 285 x 226 mm
  • Charging Interface: SAE J1772 & Type-2 cable/ Type-2 socket
  • Tipo de montaje: pared o suelo (pedestal suministrado por separado)

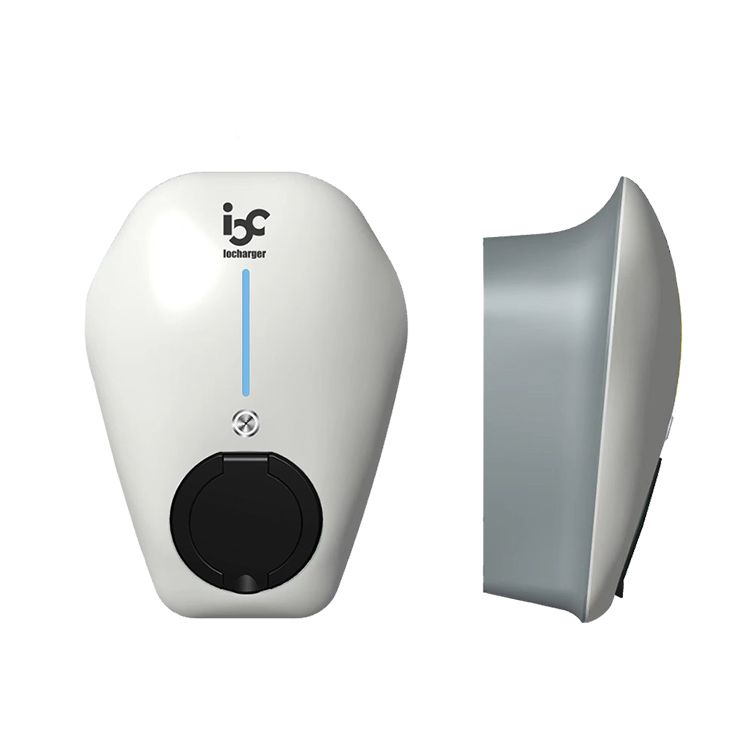

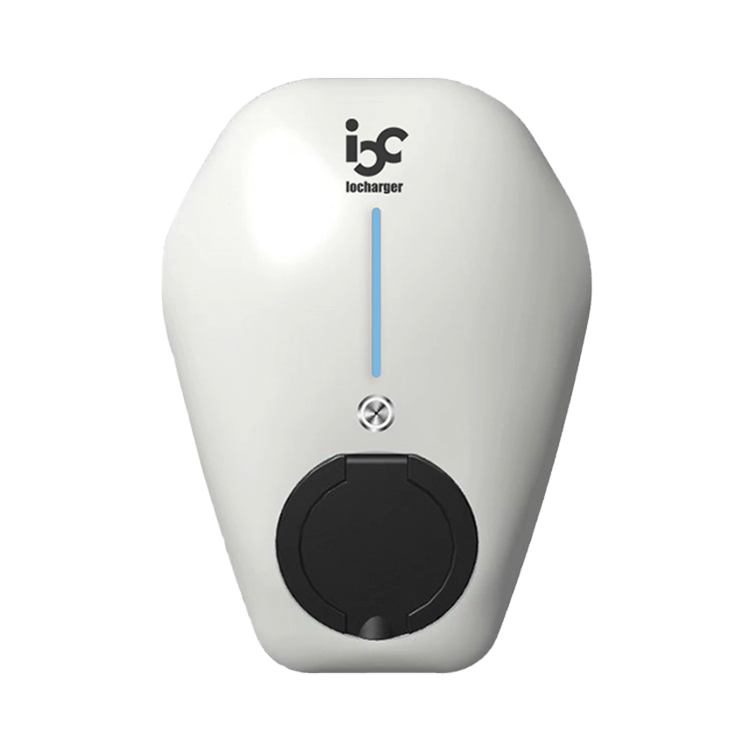

IOCAH30 is a perfect choice for home charging with a compact design yet powerful and smart. Multiple functions are available on IOC Lite App to manage charging schedules, load balancing and energy sources from solar & battery.

Características principales:

  • Compatible con todos los vehículos eléctricos y redes eléctricas.
  • Single phase 32A 7kW & Three phase 16A 11kW / 32A 22kW available
  • Diseño aerodinámico, apariencia sencilla y elegante.
  • Ethernet, Wi-Fi, Bluetooth connection
  • Flexible output current / power configuration
  • Luz respiratoria personalizable según las preferencias
  • Compatibilidad con el equilibrio de carga dinámico inteligente
  • User authentication via Mobile App
  • Portal web para la puesta en marcha de cargadores multifuncionales
  • Control y supervisión remotos
  • Protección contra fugas de corriente de 30 mA CA y 6 mA CC Certificado según las normas IEC62955 e IEC61008

Bluetooth Technology

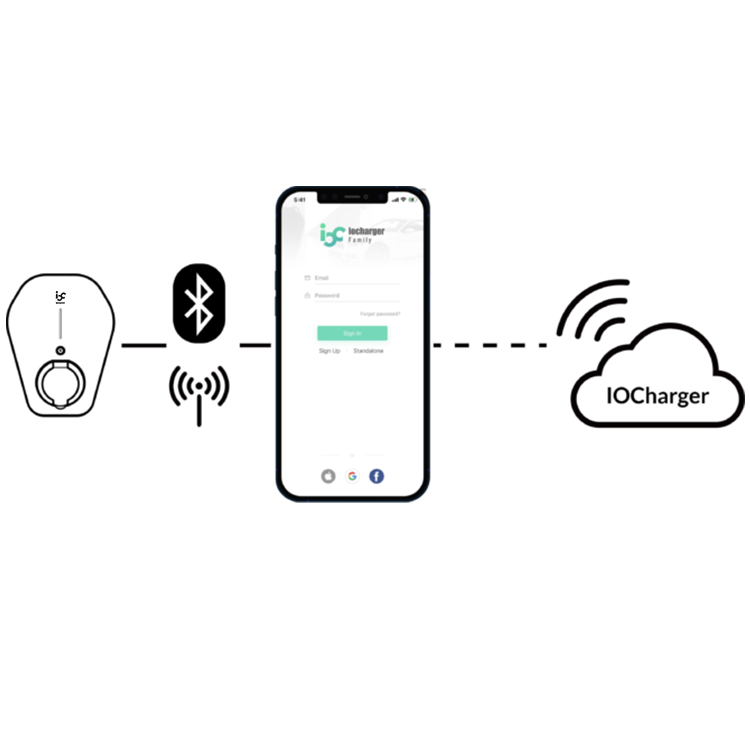

IOCAH30 has integrated our latest Bluetooth technology to maximize the user experience in challenging environments like underground parking, in apartment buildings and offices, our mobile App can work seamlessly with or without network connection.

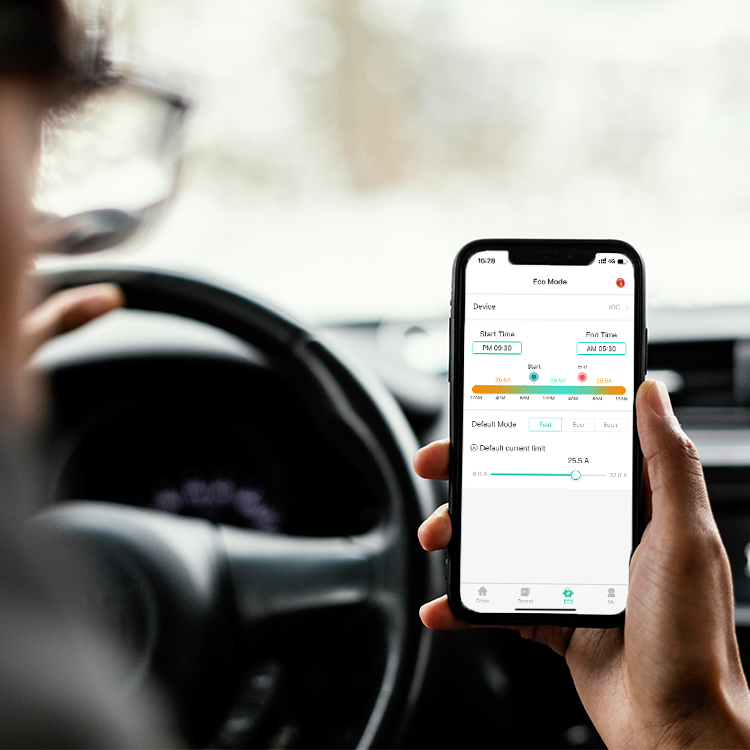

Users can start, stop and manage the charger via an Internet/Bluetooth connection and the data will be synchronized between the phone and back-end once the phone has coverage.

Equilibrio dinámico de la carga

The CT clamp can be connected to the IOCAH30 mini smart AC charger directly for current monitoring of other home appliances, without extra device. The charging current is automatically adjusted according to real-time current values. It can prevent our home from overloading with installation of single or multiple chargers, either online or offline.

smart ev charger home

OCPP 1.6J & 2.0.1

As a member of OCA(OCPP) & OCPI, our EV chargers are always integrated with the latest OCPP technology including OCPP 1.6J and OCPP 2.0.1. With more than 8 years’ OCPP experience, our chargers are certified by major OCPP platforms and CPOs.

Optimize Energy Usage

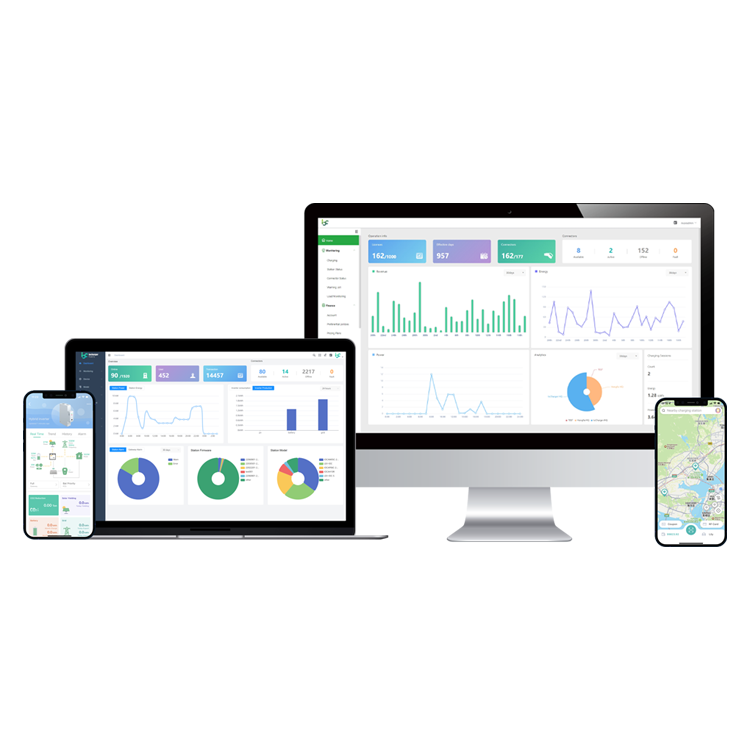

Fully compatible with solar installation and battery storage system. Connect IOCAH30 to IOC Lite Mobile App to experience Fast, ECO, ECO+ modes to minimize the charging cost, monitor and utilize different energy sources from grid, solar and home batteries.
