iocharger

Caricabatterie rapido CC

ISO15118 Plug&Charge V2G Livello 3 OCPP 1.6J OCPP 2.0.1 Conforme 30kW 60kW Wallbox CC

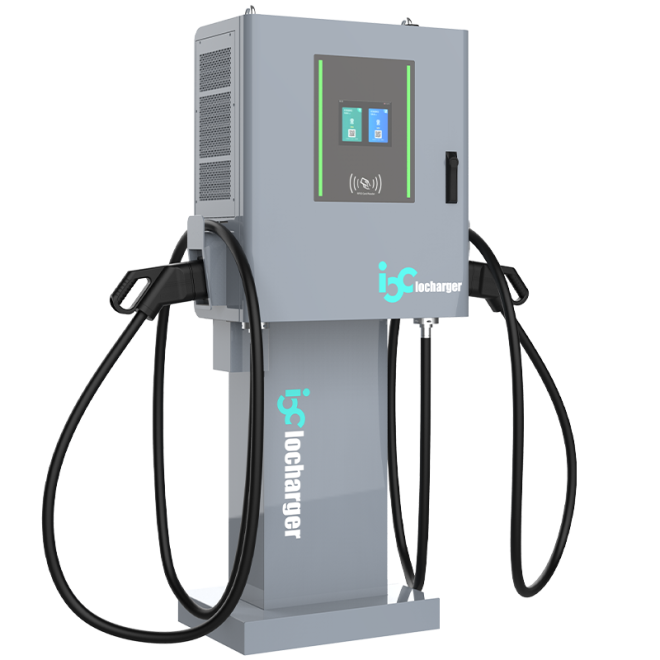

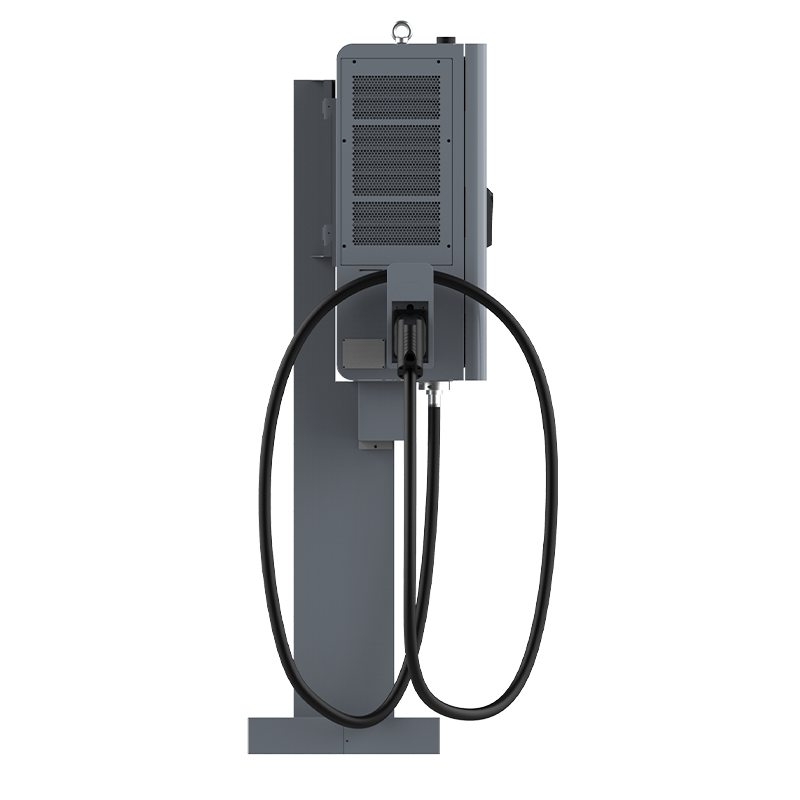

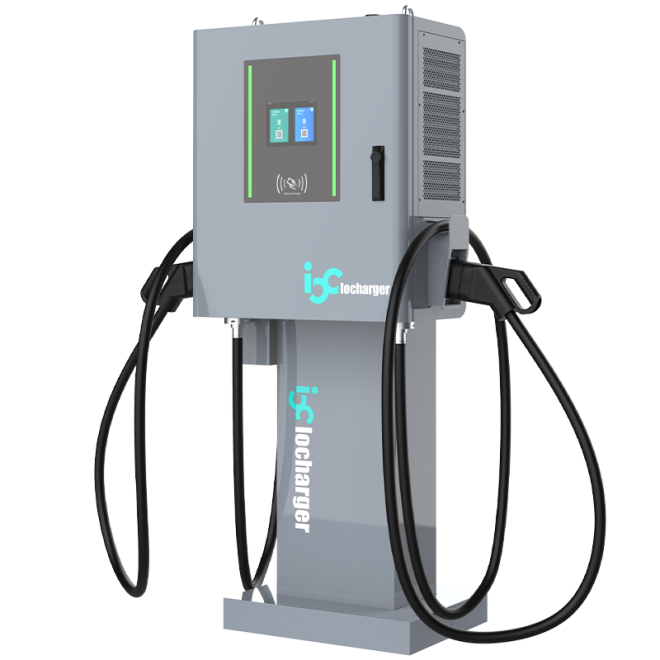

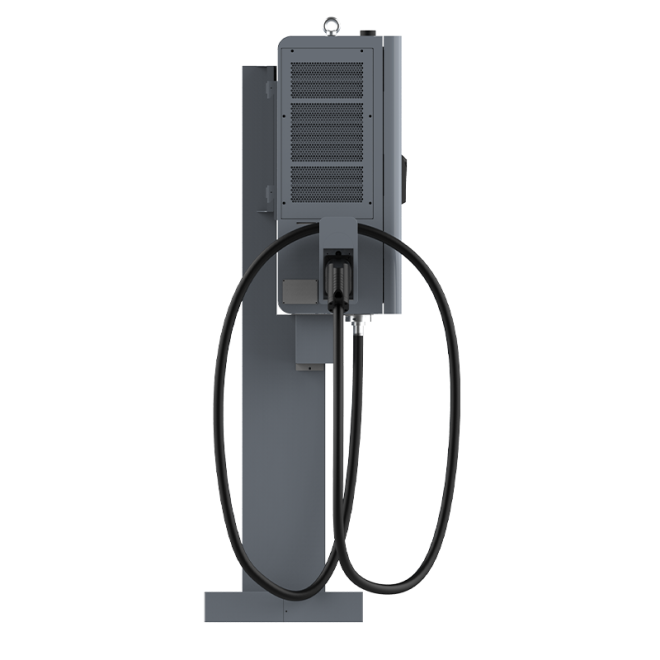

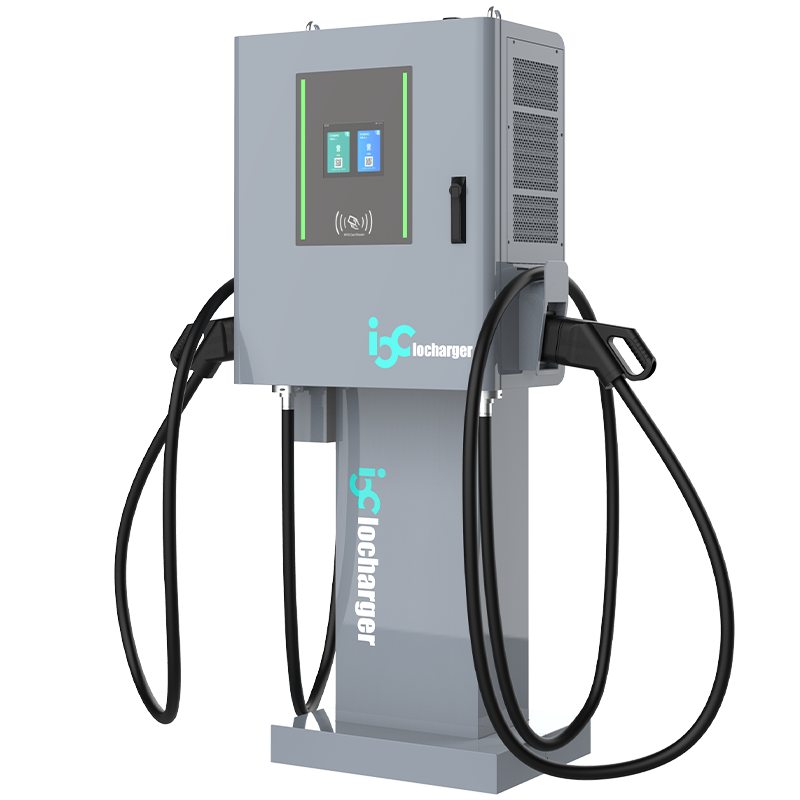

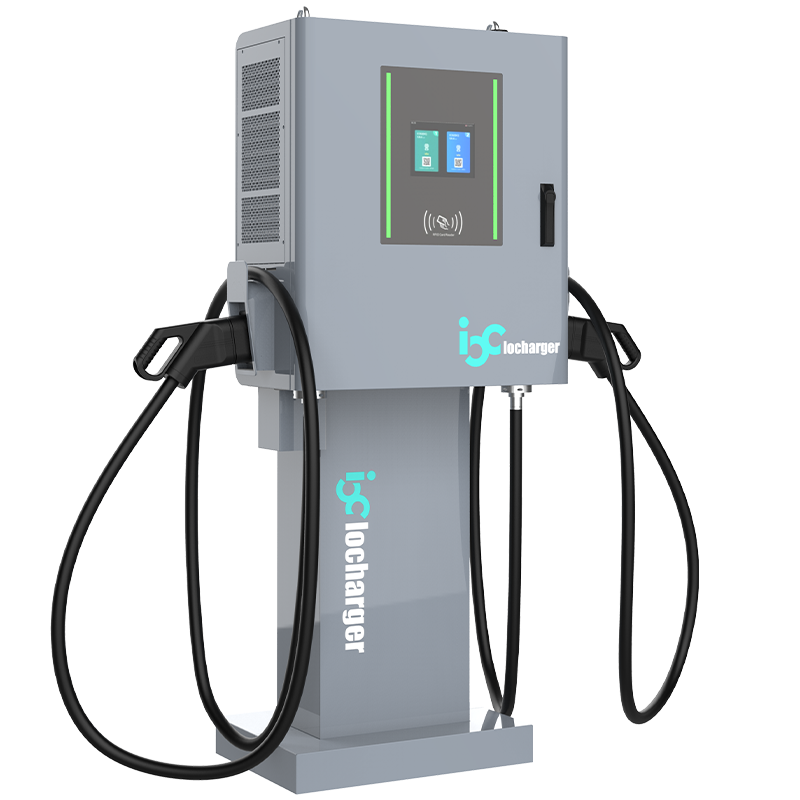

IOCHY2 is a compact DC charging station can be fixed on wall or floor-mounted as an option, easy to use for everyone.

  • Potenza nominale in ingresso: trifase 400 V ± 15% CA
  • Max DC output power: 30kW/ 60kW
  • Intervallo di tensione di uscita CC: 150 V-1000 V CC
  • Display: LCD touch screen TFT da 8 pollici
  • Network Interface: Ethernet/ 4G smart internet connection
  • OCPP: supporto completo dei profili OCPP 1.6J/ OCPP 2.0.1
  • ISO15118 Plug&Charge: aggiornabile
  • Protezione dall'ingresso: IP54
  • Charging Interface: 1 CCS/ 1 CHAdeMO/ 2 CCS/ 2 CHAdeMO/1 CCS +1 CHAdeMO
  • Mounting Type: Wall or Floor( pedestal supplied separately)
  • Dimension: 355×690×770mm

Caratteristiche principali:

  • Charging speed up to 60kW
  • CCS 1, CCS 2, CHAdeMO, GB/T charging connector
  • ISO 15118 Plug & Charge
  • Support two charging connectors charging simultaneously
  •  95% power efficiency for cost-saving operation
  • Embedded RFID card reader for user authentication
  • 8 inch LCD touch screen & user-friendly interface easy to operate
  • Codice PIN (OTP)
  • Full OCPP 1.6J & OCPP 2.0.1 commands support

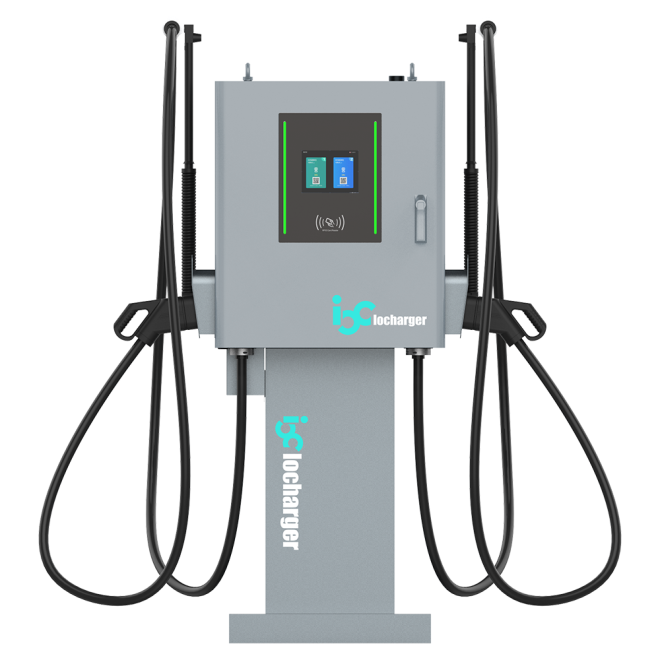

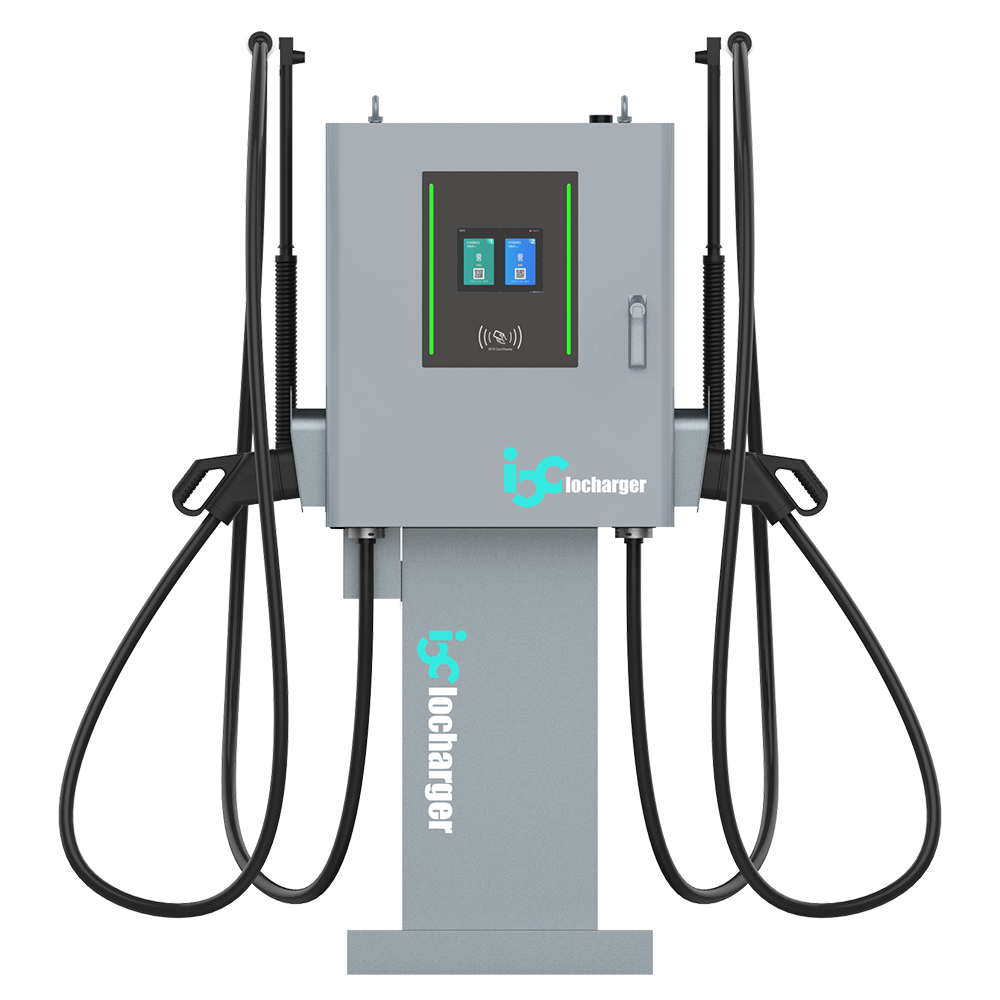

30kw wallbox dc ev charger IOCHY2

Fast charging speed and high efficiency

IOCHY2 allows maximum 60kW charge power which ensure long endurance mileage in short-time charging. Charging efficiency over 95% and low standby consumption make cost-saving operations possible.

Applicable to a wide variety of use cases

With its ultra-compact design, it is safe and reliable for residential, workplace offices, public commercial assets like shopping centers, hotels, parking structures, fleets, etc.

Easy to use

IOCHY2 enables safe authentication and secure payment through RFID, mobile Apps. The multi-language supported 8 inch touch screen makes the charging operation easy & understandable for all users.

Smart charging supported

Smart charging via latest OCPP. Dynamic load management feature makes it ready for integration with advanced smart building energy building or when power source is limited.
