Cargador comercial de VE

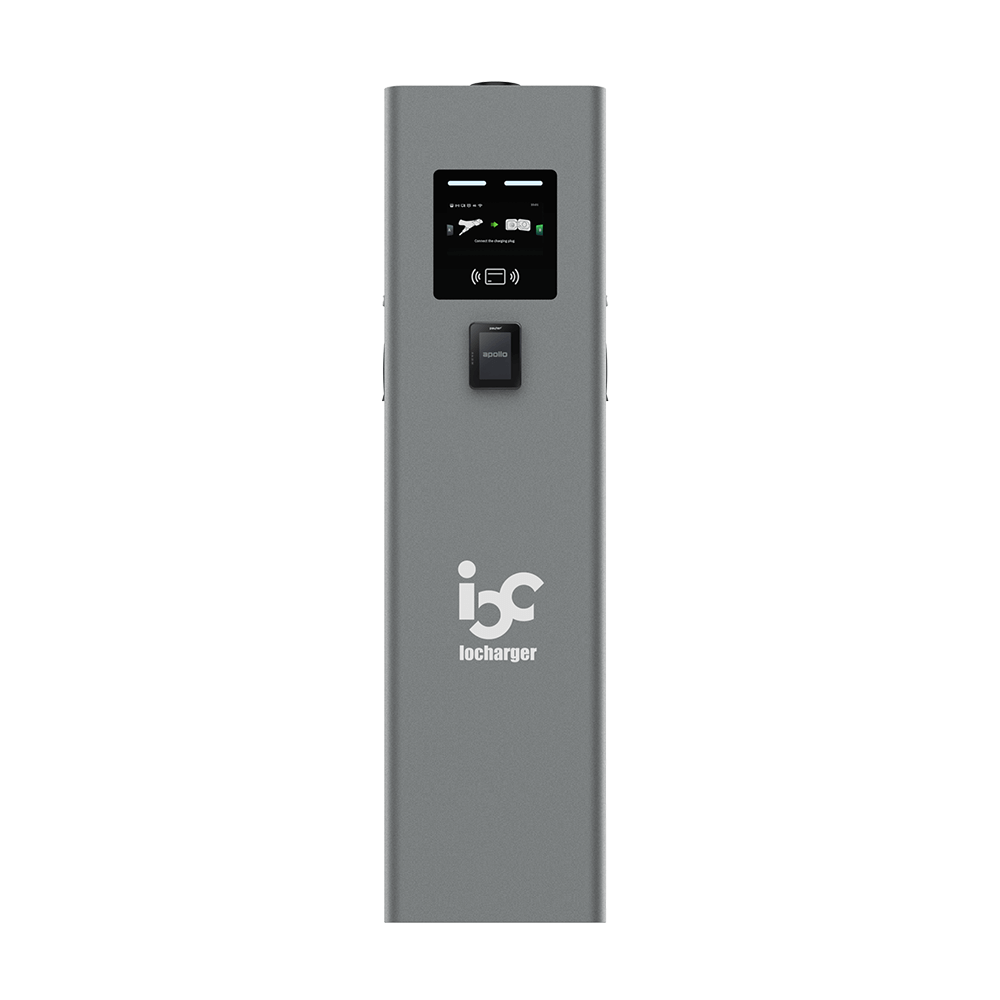

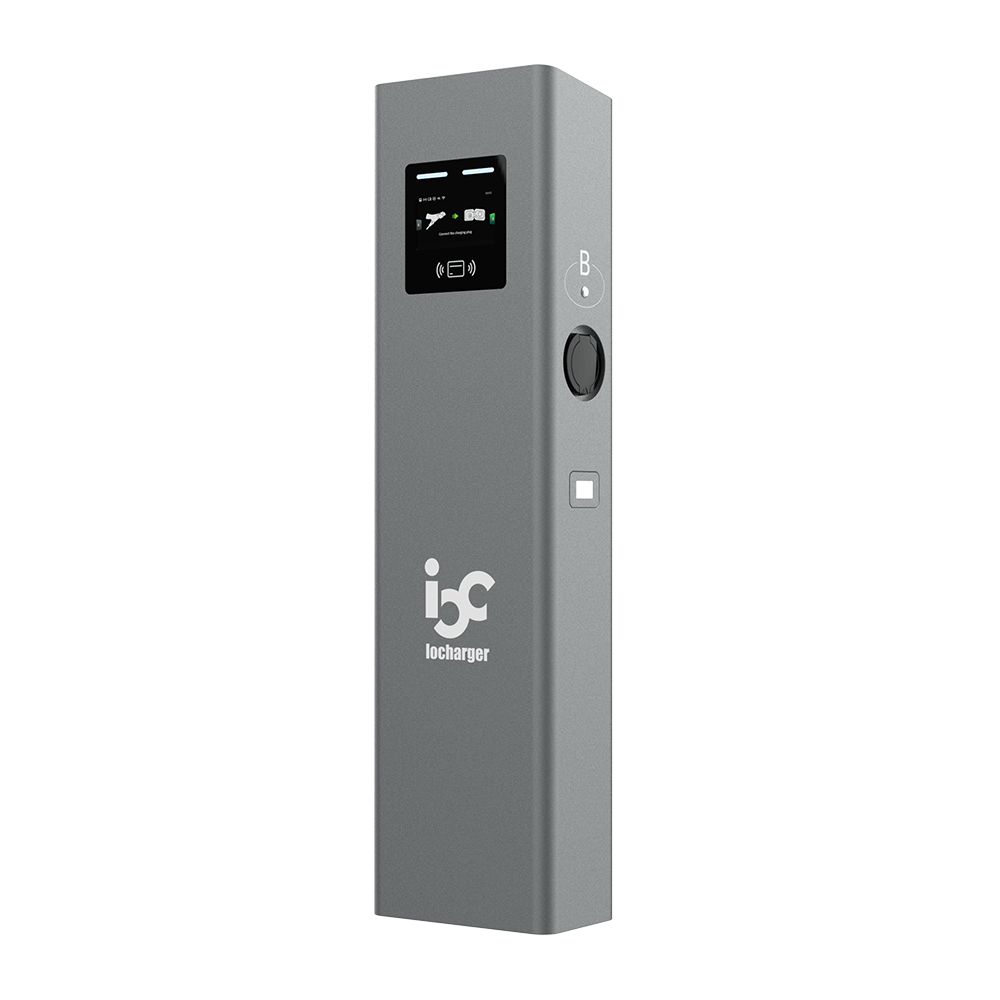

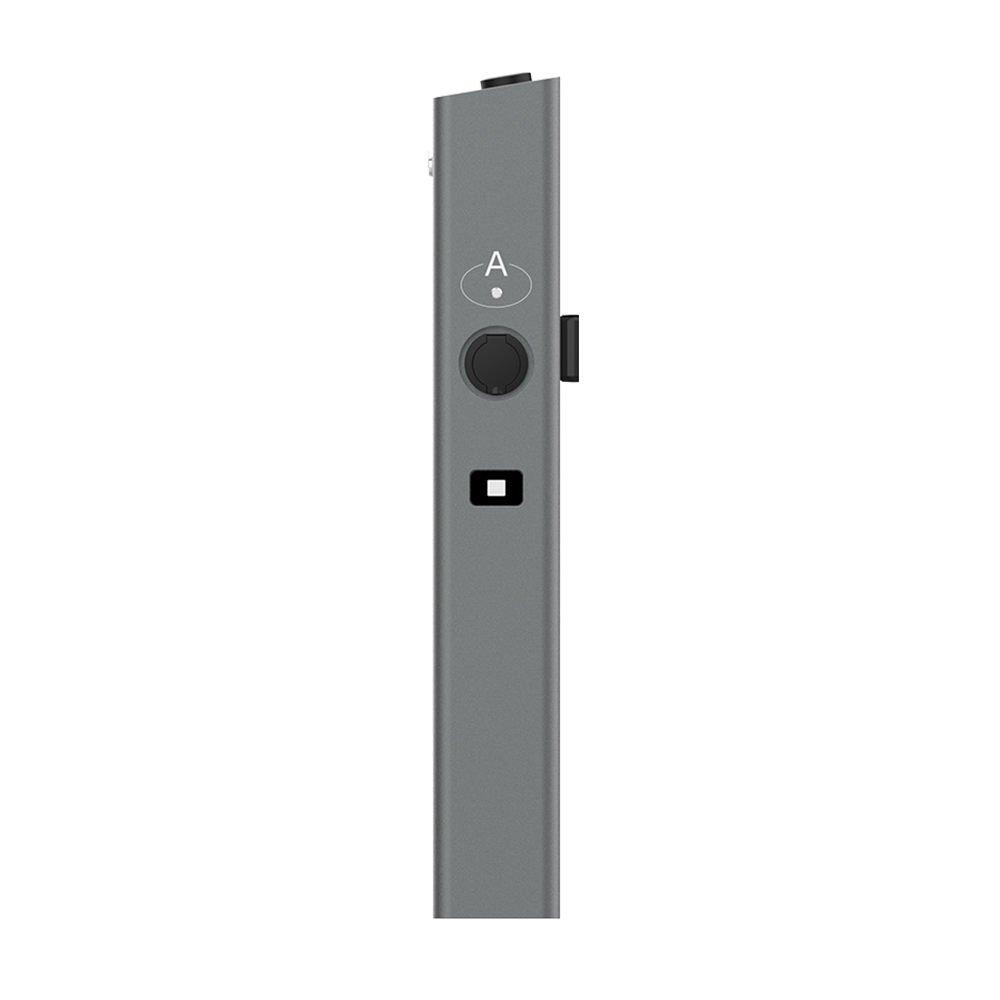

Cargador de CA para vehículos eléctricos con dos puertos y pedestal, compatible con OCPP 1.6J y 2.0.1, y con la norma ISO 15118 Plug&Charge.

IOCAP35 is a newly released pedestal EV charger model with new appearance design, but still with high performance and reliable quality as our tradition. Providing another good choice for Parking lots, workplaces, and Fleet EV charging applications.

Model: IOCAP35

  • Potencia nominal de entrada: monofásica 230 V ± 201 TP3T; trifásica 400 V ± 201 TP3T
  • Potencia nominal: monofásica 2 x 7 kW 32 A; trifásica 2 x 22 kW 32 A
  • RCD interno: 2 x RCCB tipo B
  • Display: 7” LCD or 7” touch screen optional
  • Medidor: 2 medidores MID
  • Certificado: CE, PTB (Eichrecht)
  • Interfaz de red: conexión a Internet inteligente Ethernet/WiFi/4G
  • OCPP: Compatibilidad total con OCPP 1.6J/ OCPP 2.0.1
  • Protección contra la entrada de agua y polvo: IP55
  • Shipping Dimensions: 1320 x 350 x 200 mm
  • Interfaz de carga: cable SAE J1772 y tipo 2/enchufe tipo 2/enchufe T2S con obturador
  • Tipo de montaje: Suelo

IOCAP26 is especially designed for commercial charging purposes. High water and dust resistant with IP55 and IK10 protection rating make it perfect for outdoor charging locations like Gas stations, Parking lots, Street corners, etc.

Características principales:

  • Compatible con todos los coches y redes eléctricas.
  • 2 x RCCB tipo B
  • 2 x Medidor MID
  • 2 x SPD 40KA
  • 7’’ LCD display, upgradeable to touch screen
  • Smart network connectivity Ethernet, Wi-Fi, Cellular, Bluetooth
  • POS payment integration
  • Configuración flexible de la corriente/potencia de salida
  • Compatibilidad con el equilibrio de carga dinámico inteligente
  • Separate MID meter reading window
  • Portal web fácil de usar para la configuración del cargador

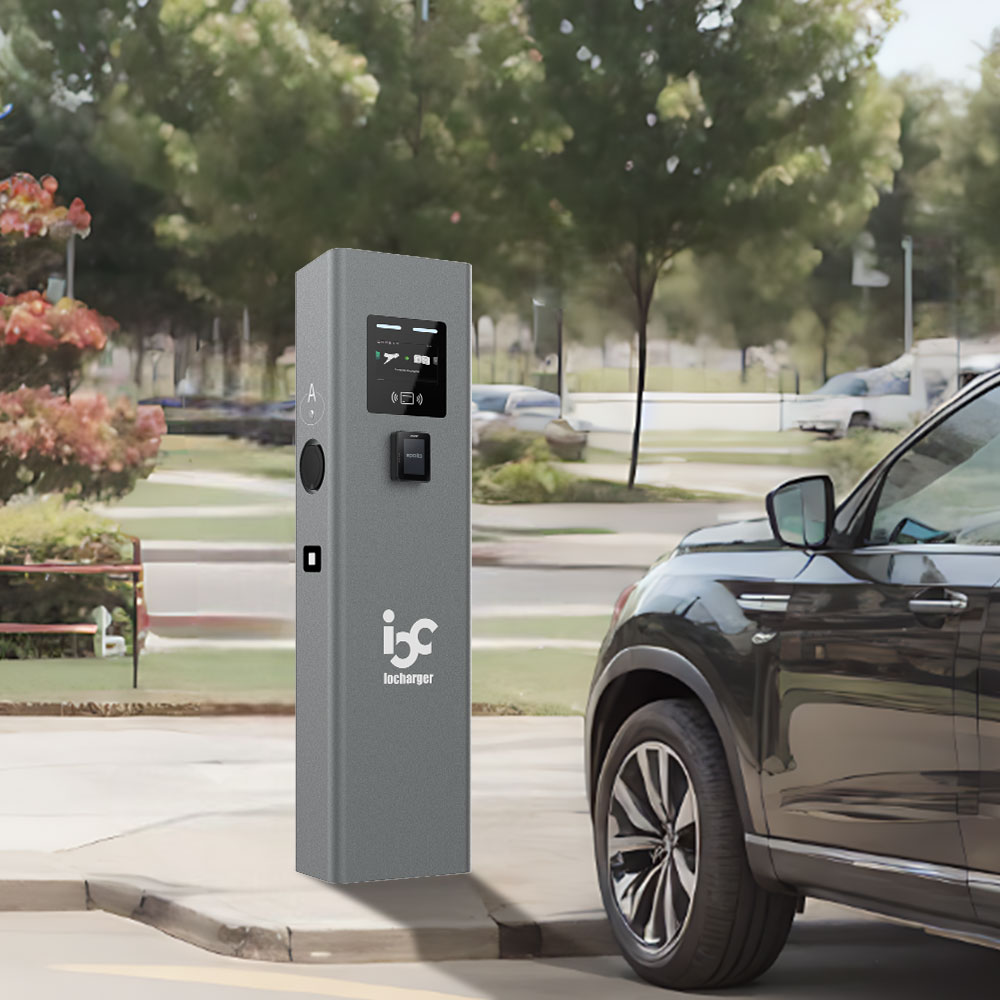

iocharger IOCAP35

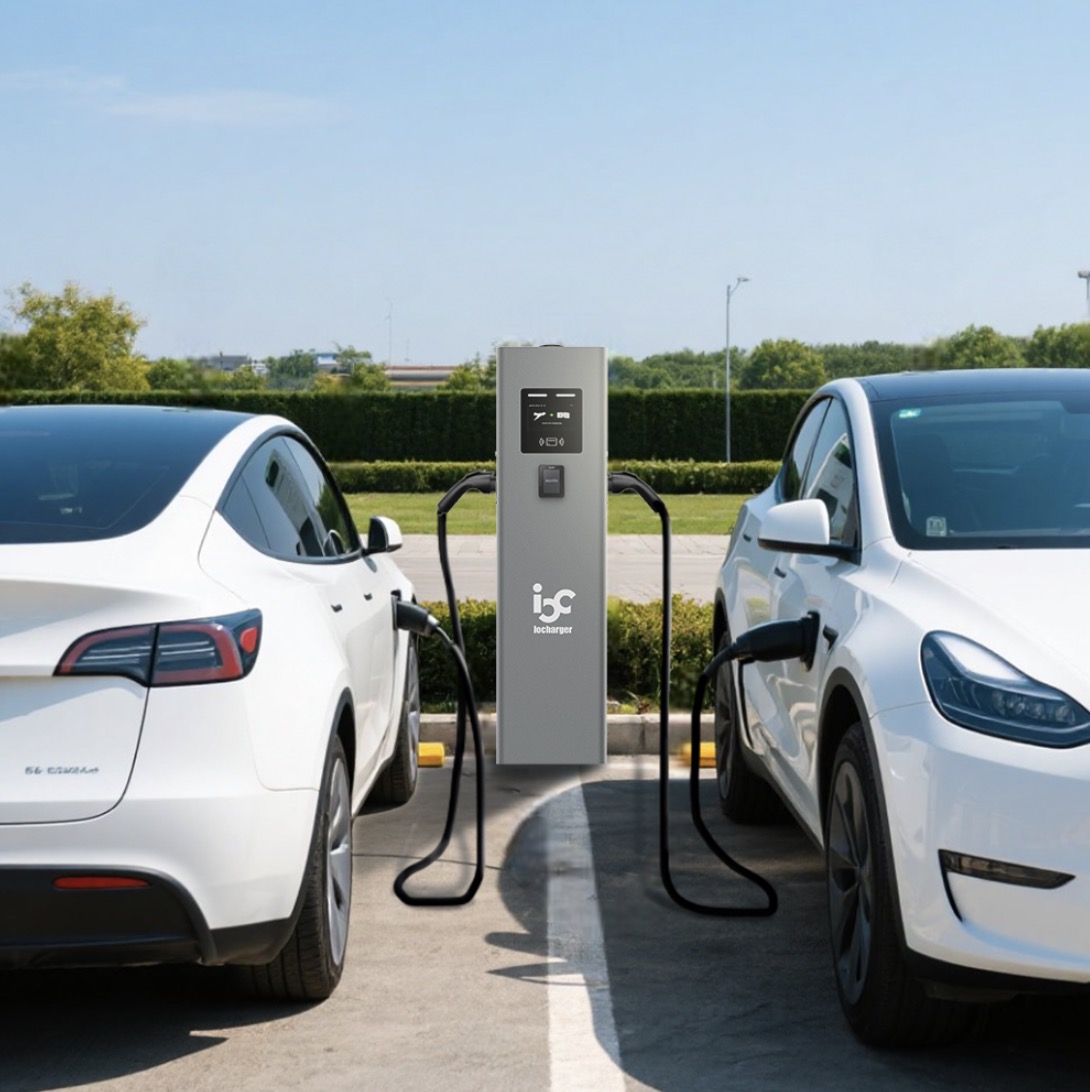

dual ports ev charger post

Powering Two EVs at Once

IOCAP35 supports the simultaneous charging of two electric vehicles (EVs), significantly enhancing charging station efficiency and elevating the customer experience. Its dual-port design increases service capacity by reducing wait times and maximizing equipment utilization, thereby boosting revenue potential. During peak demand periods, the system intelligently manages power distribution to balance the load, ensuring grid stability while optimizing overall charging speeds.

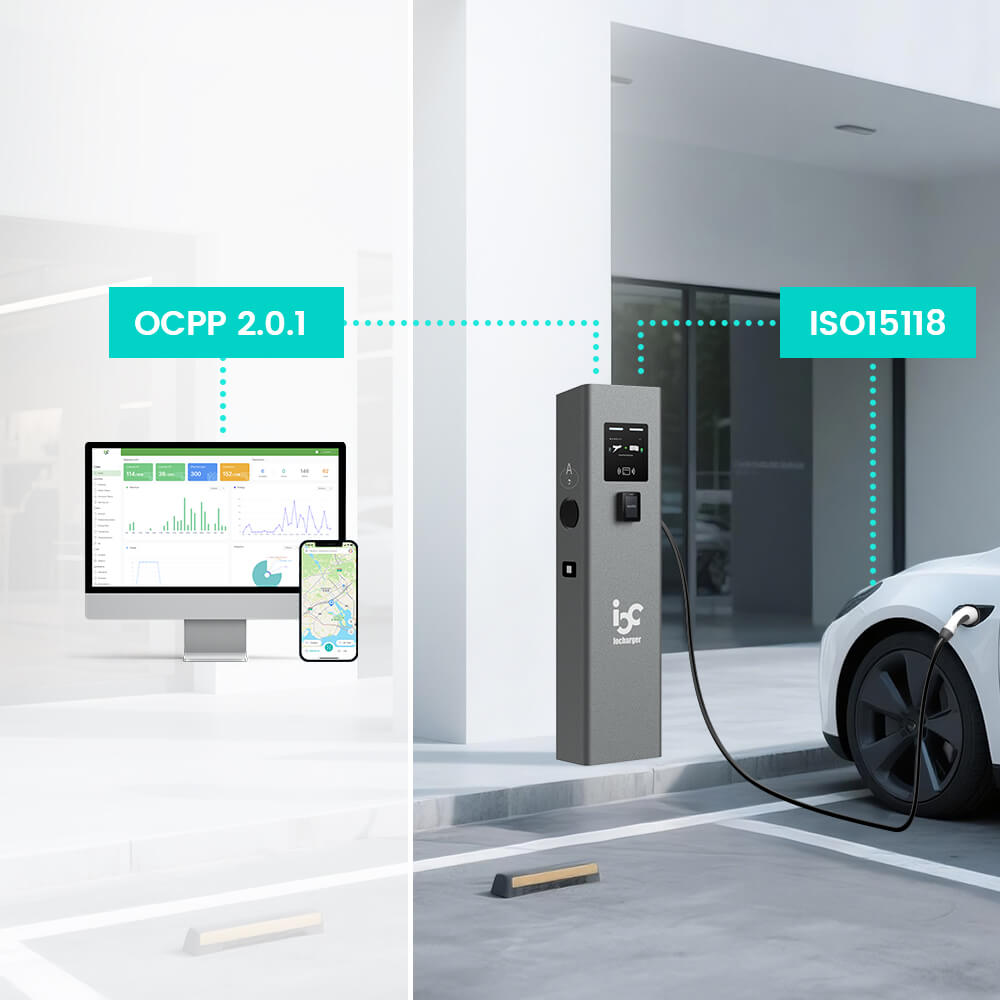

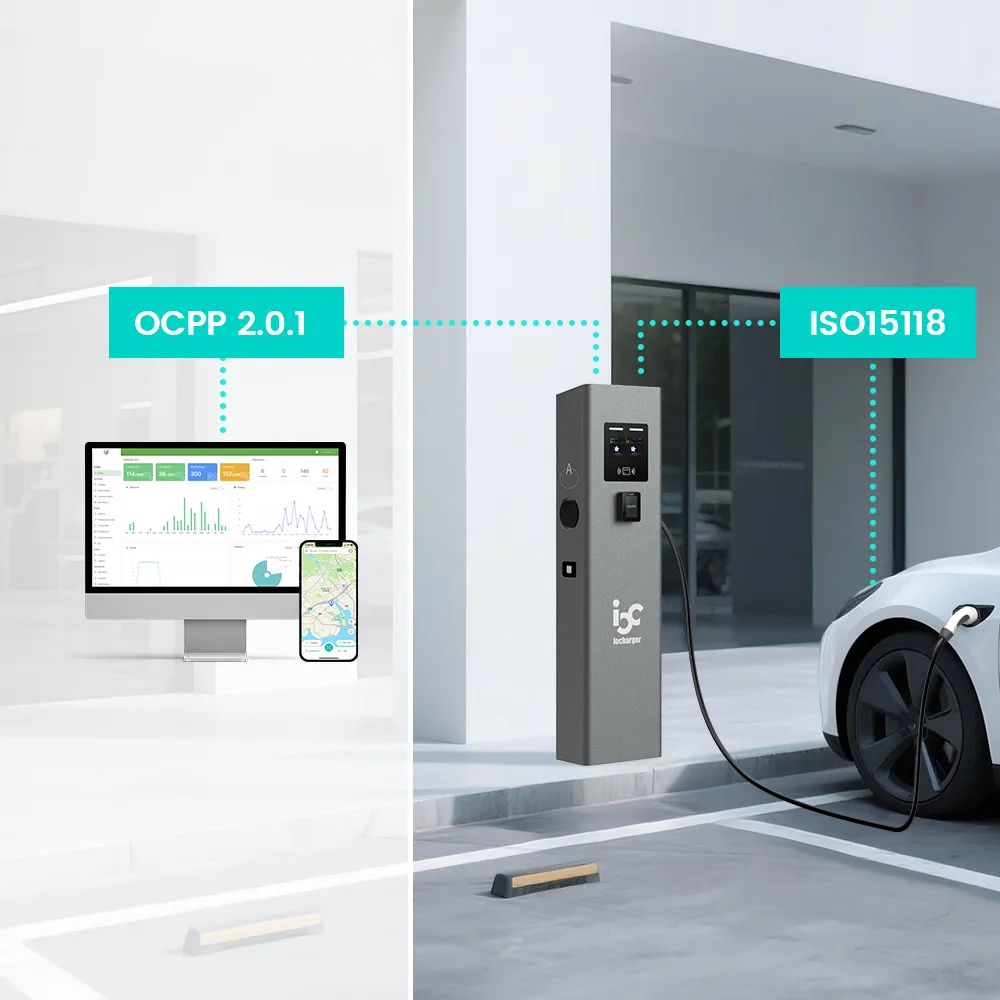

ISO15118 Ready for Smarter & Safer EV Charging

IOCAP35 is fully compliant with the OCPP 1.6J & 2.0.1, and ISO15118 Plug&Charge, making it an ideal choice for commercial EV charging applications. It enables seamless, intelligent communication between the vehicle and the charger, supporting automatic authentication and streamlined payment, all while maintaining strong data security. With advanced Vehicle-to-Grid (V2G) capabilities, the IOCAP35 contributes to smarter grid management and improved energy efficiency. Its high level of interoperability ensures compatibility with a wide range of electric vehicles, allowing operators to scale their charging networks effortlessly.

iso15118 public ev charger

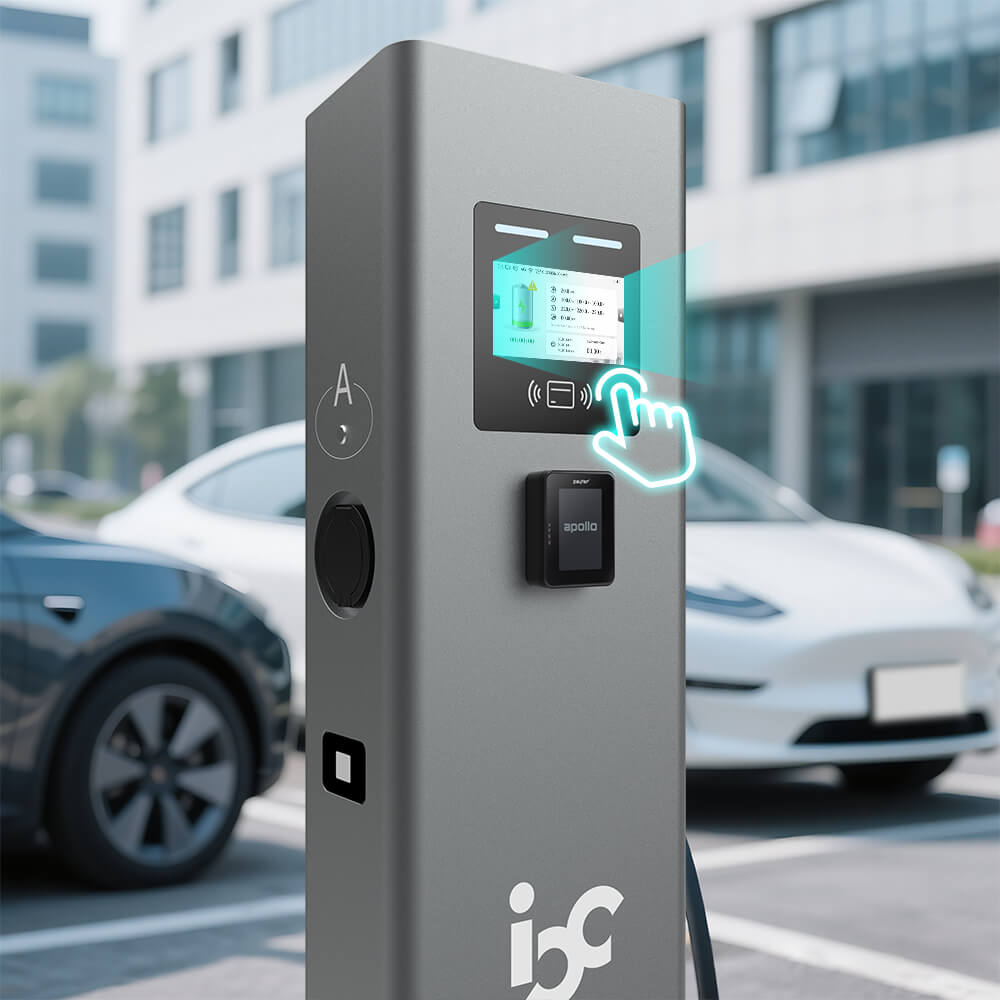

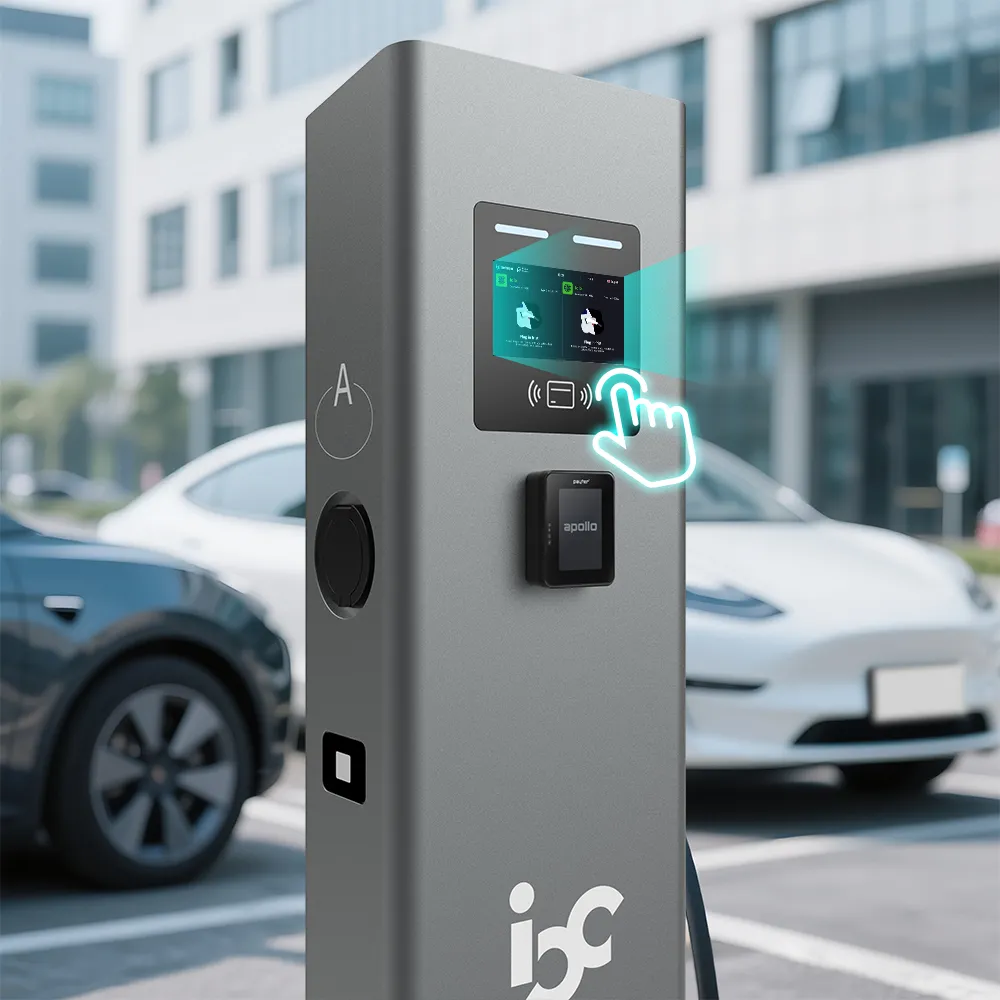

Smart Charging with Full Cost Visibility

With tariff and cost display support, IOCAP35 provides full pricing transparency to end users, enhancing trust and satisfaction during the charging process. Real-time display of charging rates, session duration, energy consumption, and total cost allows EV drivers to make informed decisions before and during charging. For operators, this feature ensures regulatory compliance in markets that require price disclosure and promotes a more professional and user-friendly charging experience. Clear cost visibility not only improves customer engagement but also helps reduce disputes, making the entire charging process more efficient and reliable.

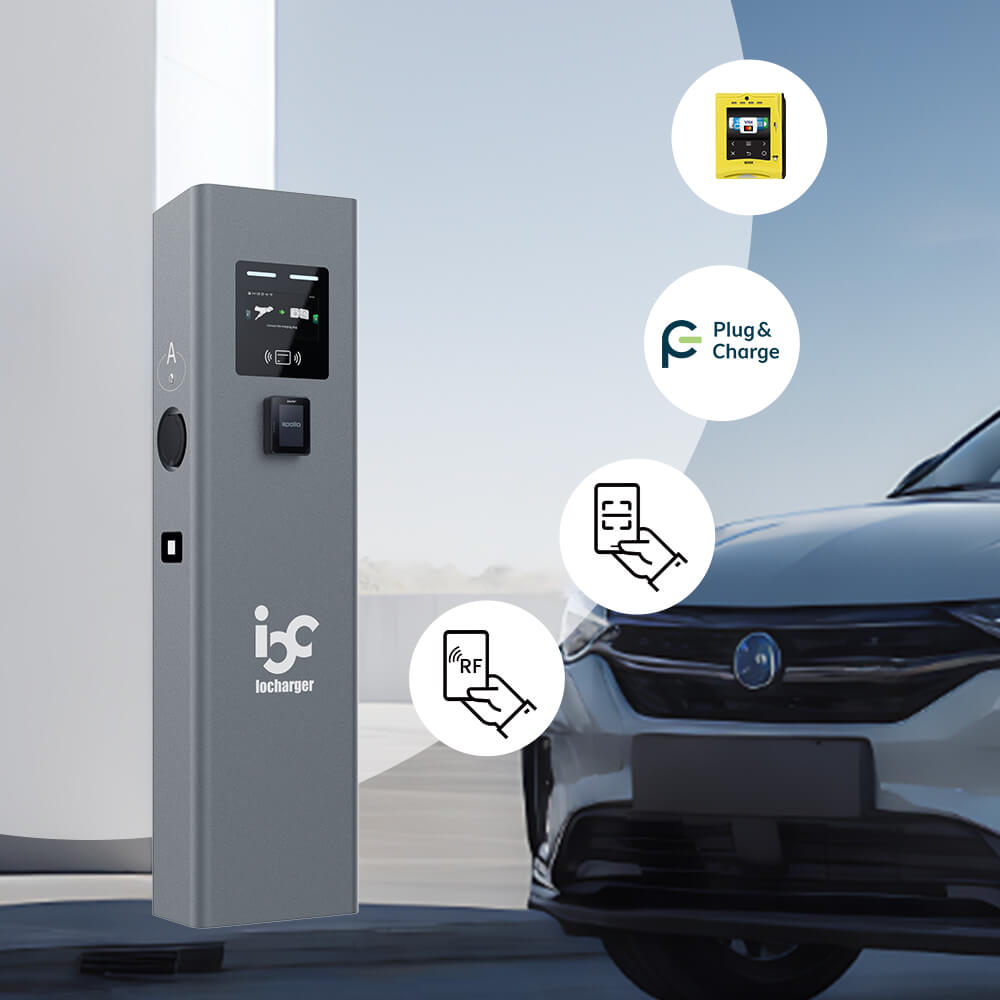

Flexible and Secure Payment Options

IOCAP35 supports a wide variety of payment methods, delivering exceptional flexibility and convenience for both operators and EV drivers. Whether through RFID cards, mobile apps, QR code scanning, or credit card payments, it integrates seamlessly with payment platforms like Nayax, Payter, PAX, Ingenico, etc. This versatility enhances the user experience by accommodating diverse preferences and simplifies operations for charging providers. With fast, secure, and intuitive transactions, it helps attract a broader customer base and ensures a smooth, efficient charging process.

iso15118 plug and charge pedestal ev charger
