iocharger

Kommerzielles EV-Ladegerät

ISO15118 Plug&Charge Level 2 7 kW 22 kW OCPP 1.6J OCPP 2.0.1 Intelligentes Schnellladegerät für Elektrofahrzeuge

The smartest charger with intelligent charging function and a user-friendly mobile app which with functions like charging schedule management, energy management, Eco mode, etc.
  • Eingangsleistung: 1-phasig 230V±20% ; 3-phasig 400V±20%
  • Ausgangsleistung: 1-phasig 7kW 32A ; 3-phasig 22kW 32A
  • Internal RCD: AC 30mA & DC 6mA IEC62955 & IEC61008 certified
  • Display: 2.8” LCD
  • Meter: Meter IC or MID meter (Optional)
  • Netzwerk-Schnittstelle: Ethernet/ WiFi/ 4G Smart Internet Verbindung
  • OCPP: Vollständige Unterstützung von OCPP 1.6J/ OCPP 2.0.1
  • ISO15118 Plug&Charge: Aufrüstbar
  • Schutz gegen Eindringen: IP55
  • Shipping Dimensions: 500 x 383 x 198 mm; 500 x 383 x 243 mm
  • Ladeschnittstelle: SAE J1772 & Typ-2 Kabel/ Typ-2 Buchse/ T2S Buchse mit Shutter

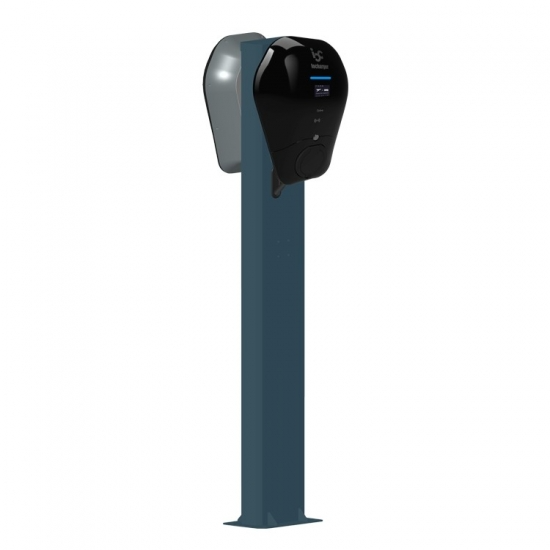

  • Montageart: Wand oder Boden (Sockel wird separat geliefert)

Smart and intelligent ev charger for home

IOCAH20 is a smart, easy to install charger that allows you to add smart services and manage the charger remotely. Combined with IOC Family mobile App, it offers a full range of functions to control your charger status, users, charging schedules, energy consumption, and much more. The smart features make IOCAH20 the ideal choice for your home charging.

Hauptmerkmale:

  • Kompatibel mit allen EVs und Stromnetzen
  • Both socket & tethered version available
  • 2.8” LCD display for easy and user-friendly operation

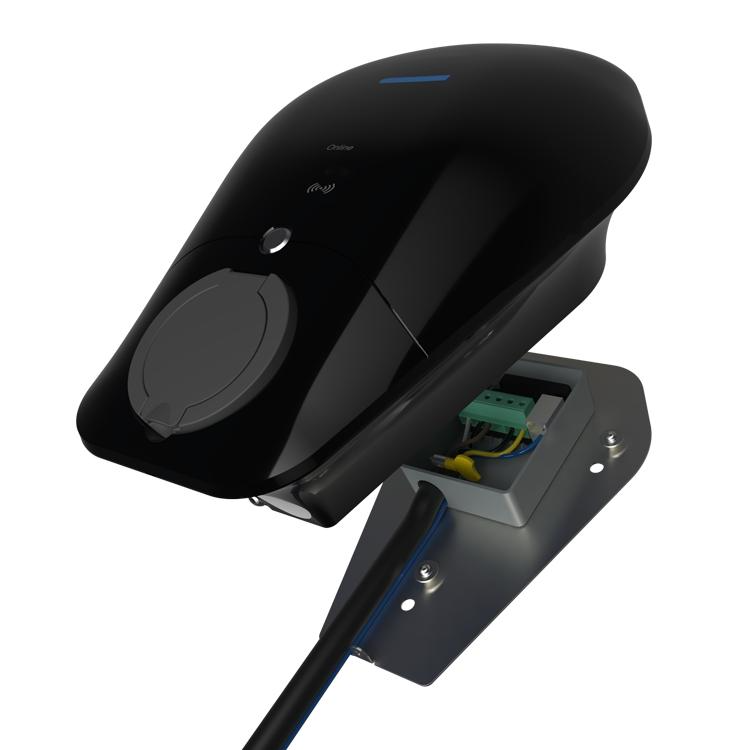

  • Unique installation design with independent backplate
  • Flexible Ausgangsstrom-/Leistungskonfiguration
  • Customizable breathing lightaccording to preferences
  • Unterstützung für intelligente dynamische Lastverteilung
  • Benutzerauthentifizierung über RFID oder Mobile App
  • Benutzerfreundliches Webportal für die Konfiguration des Ladegeräts
  • Fernsteuerung und Überwachung
  • Streamlined design, simple and elegant appearance
  • AC 30mA & DC 6mA current leakage protection

Graphic display and Customizable breathing light

IOCAH20 equipped with 2.8’ LCD display which means user can easily check the charger status and real-time charging data. These information provides user the preliminary fault diagnosis and minimizes the cost and time of maintenance.

Each user can set the breathing light of charger each status according to their own preferences, including type, flashing speed, color, etc. With this stylish functional design IOCAH20 provides users the ultimate experience.

OCPP compliant
Fully OCPP 1.6J and OCPP 2.0 profiles compliant, which means you can easily connect it to any 3rd party OCPP CCMS for remote monitoring and management.

Unterstützung für dynamischen Lastausgleich
Load balancing feature of IOCAH20 makes it perfect for home and residential charging. It ensures that user can dynamically balance all the available electricity at home, including solar energy, battery system, and the circuit would never be overloaded. All the equipment can then run normally to maximize the economic power consumption.

Dynamisches Lastabgleich-Ladegerät

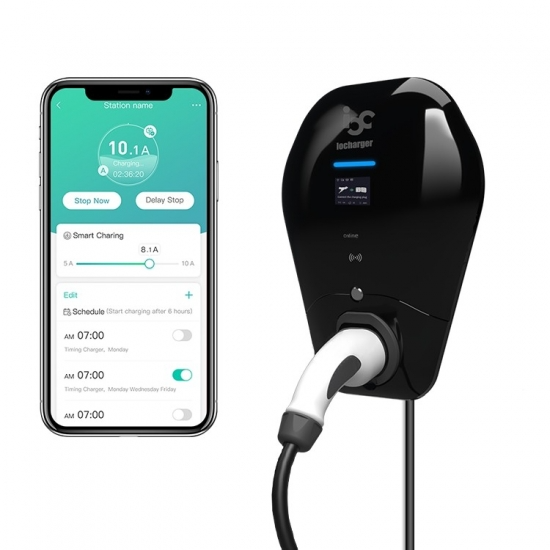

smart app control ev charging

Economical charging

The exponential surge in electricity prices has significantly escalated the household electricity expenses for consumers. It is the best choice for users to use the time-of-use electricity price for off-peak charging to minimize the charging cost. Our IOC Family mobile app provides full control over charging and consumption. The app also allows user to charge the car when the electricity price is low by activating Eco mode
