Cargador comercial de VE

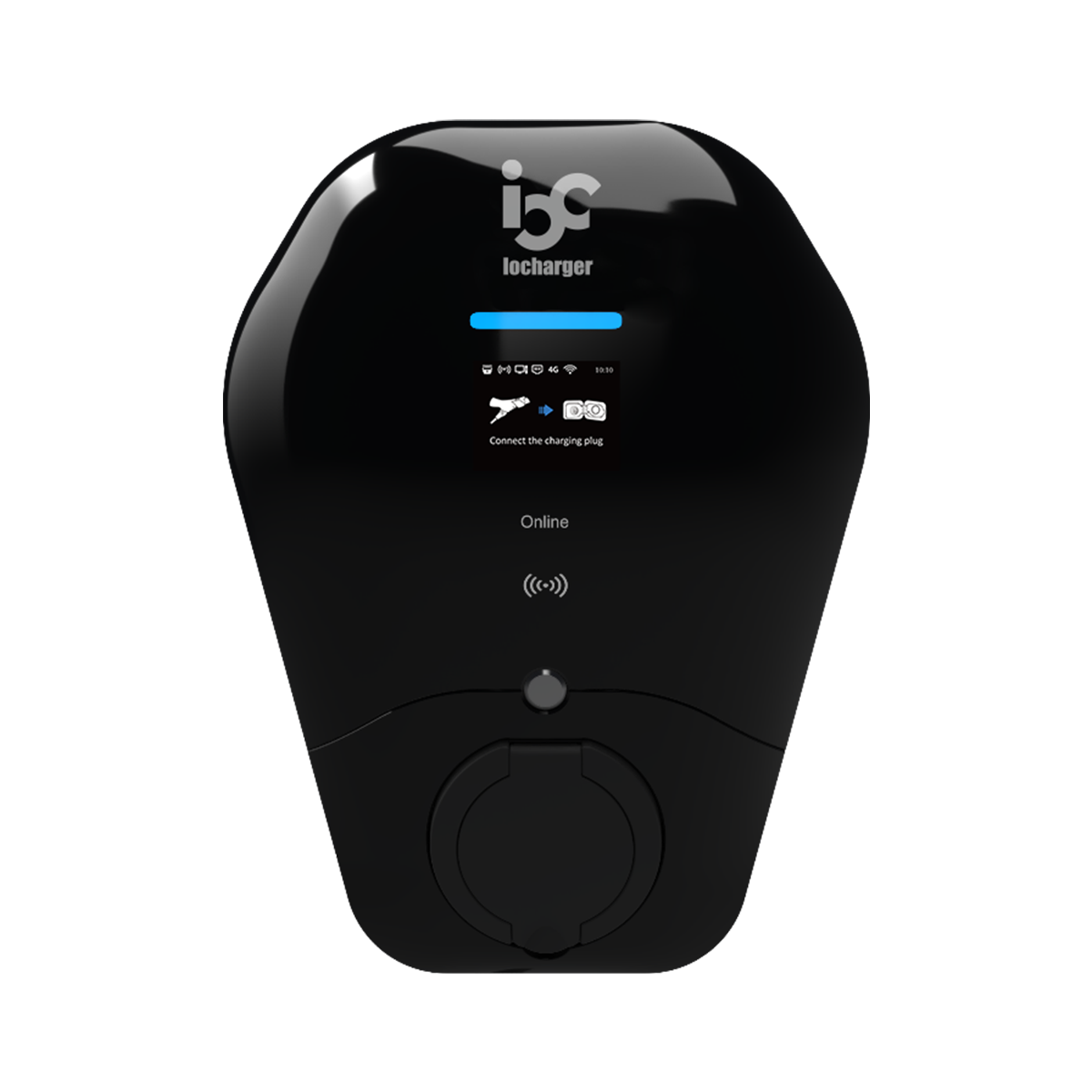

Cargador rápido inteligente para vehículos eléctricos ISO15118 Plug&Charge Nivel 2 7 kW 22 kW OCPP 1.6J OCPP 2.0.1

The smartest charger with intelligent charging function and a user-friendly mobile app which with functions like charging schedule management, energy management, Eco mode, etc.
  • Potencia nominal de entrada: monofásica 230 V ± 201 TP3T; trifásica 400 V ± 201 TP3T
  • Potencia nominal: monofásica 7 kW 32 A; trifásica 22 kW 32 A
  • RCD interno: CA 30 mA y CC 6 mA Certificado según IEC62955 e IEC61008
  • Pantalla: LCD de 2,8 pulgadas
  • Meter: Meter IC or MID meter (Optional)
  • Interfaz de red: conexión a Internet inteligente Ethernet/WiFi/4G
  • OCPP: Compatibilidad total con OCPP 1.6J/ OCPP 2.0.1
  • ISO15118 Plug&Charge: actualizable
  • Protección contra la entrada de agua y polvo: IP55
  • Dimensiones de envío: 500 x 383 x 198 mm; 500 x 383 x 243 mm
  • Interfaz de carga: cable SAE J1772 y tipo 2/enchufe tipo 2/enchufe T2S con obturador

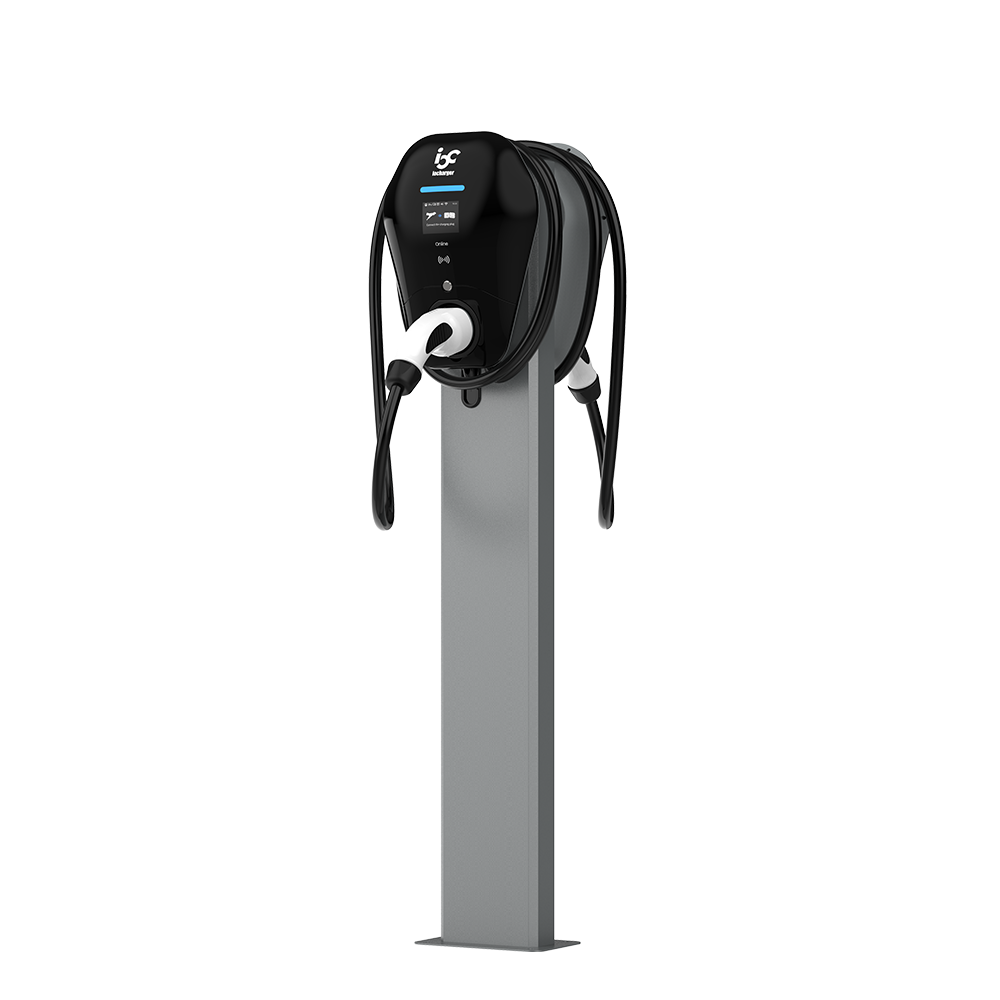

  • Tipo de montaje: pared o suelo (pedestal suministrado por separado)

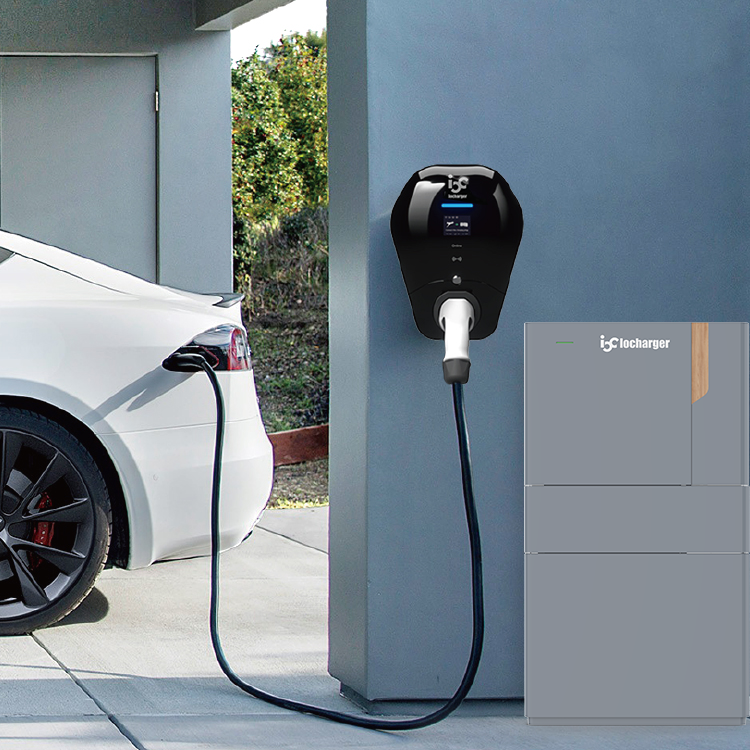

Smart and intelligent ev charger for home

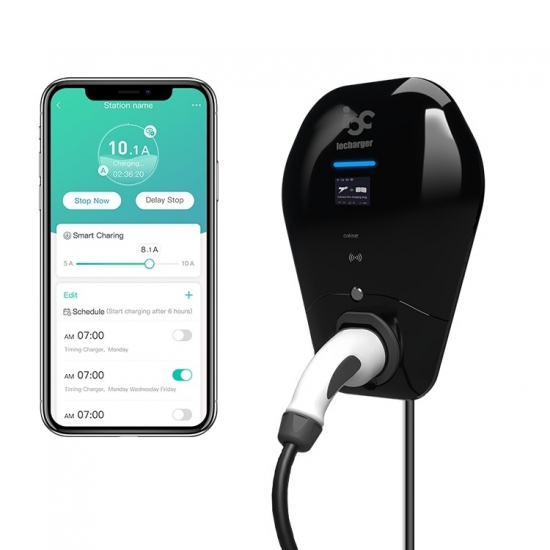

IOCAH20 is a smart, easy to install charger that allows you to add smart services and manage the charger remotely. Combined with IOC Family mobile App, it offers a full range of functions to control your charger status, users, charging schedules, energy consumption, and much more. The smart features make IOCAH20 the ideal choice for your home charging.

Características principales:

  • Compatible con todos los vehículos eléctricos y redes eléctricas.
  • Disponible en versión con enchufe y con cable.
  • Pantalla LCD de 2,8 pulgadas para un manejo sencillo e intuitivo.

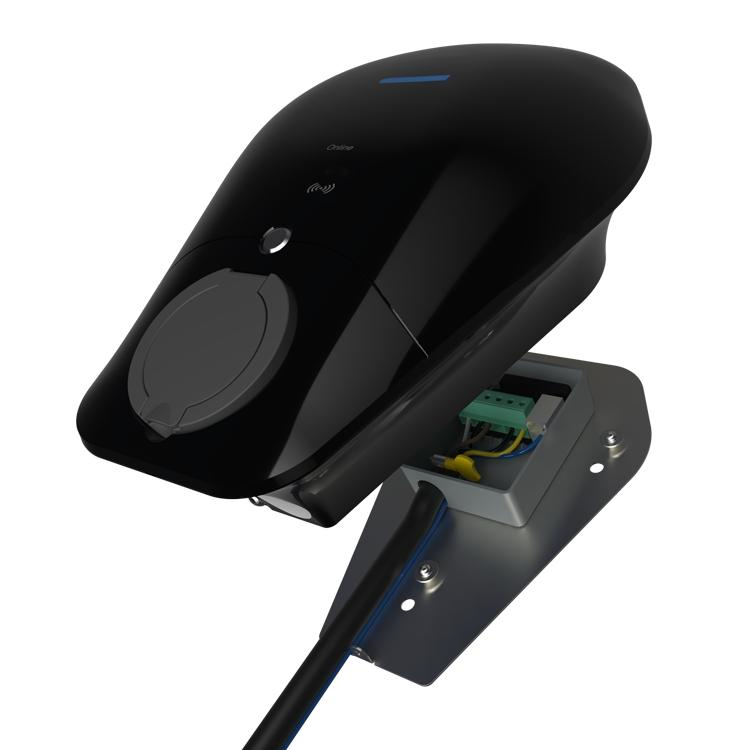

  • Diseño de instalación único con placa trasera independiente
  • Flexible output current / power configuration
  • Customizable breathing lightaccording to preferences
  • Compatibilidad con el equilibrio de carga dinámico inteligente
  • Autenticación de usuarios mediante RFID o aplicación móvil.
  • Portal web fácil de usar para la configuración del cargador
  • Control y supervisión remotos
  • Diseño aerodinámico, apariencia sencilla y elegante.
  • AC 30mA & DC 6mA current leakage protection

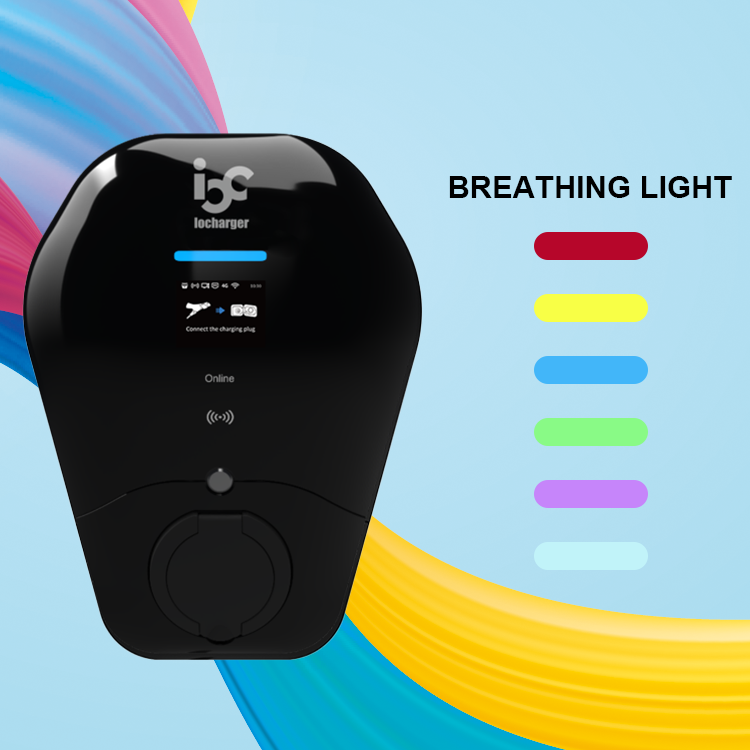

Graphic display and Customizable breathing light

IOCAH20 equipped with 2.8’ LCD display which means user can easily check the charger status and real-time charging data. These information provides user the preliminary fault diagnosis and minimizes the cost and time of maintenance.

Each user can set the breathing light of charger each status according to their own preferences, including type, flashing speed, color, etc. With this stylish functional design IOCAH20 provides users the ultimate experience.

OCPP compliant
Fully OCPP 1.6J and OCPP 2.0 profiles compliant, which means you can easily connect it to any 3rd party OCPP CCMS for remote monitoring and management.

Compatibilidad con el equilibrio dinámico de carga
Load balancing feature of IOCAH20 makes it perfect for home and residential charging. It ensures that user can dynamically balance all the available electricity at home, including solar energy, battery system, and the circuit would never be overloaded. All the equipment can then run normally to maximize the economic power consumption.

Dynamic-Load-Balancing ev charger
smart app control ev charging

Economical charging

The exponential surge in electricity prices has significantly escalated the household electricity expenses for consumers. It is the best choice for users to use the time-of-use electricity price for off-peak charging to minimize the charging cost. Our IOC Family mobile app provides full control over charging and consumption. The app also allows user to charge the car when the electricity price is low by activating Eco mode
