iocharger

Kommerzielles EV-Ladegerät

Öffentlicher ISO15118 Modus 3 32A OCPP 1.6J OCPP 2.0.1-konformer EV-Ladegerät mit bis zu 22 kW

Der zuverlässige Assistent für die Bedienung von Ladestationen.

Model: IOCAW12-22S, IOCAW12-7S

  • Eingangsleistung: 1-phasig 230V±20% ; 3-phasig 400V±20%
  • Ausgangsleistung: 1-phasig 7kW 32A ; 3-phasig 22kW 32A
  • Internal RCD: Type-B RCCB
  • Anzeige: 7” LCD
  • Messgerät: MID-Meter
  • Netzwerk-Schnittstelle: Ethernet/ WiFi/ 4G Smart Internet Verbindung
  • OCPP: Vollständige Unterstützung von OCPP 1.6J/ OCPP 2.0.1
  • ISO15118 Plug&Charge: Aufrüstbar
  • Ingress Protection: IP54
  • Ladeschnittstelle: SAE J1772 & Typ-2 Kabel/ Typ-2 Buchse/ T2S Buchse mit Shutter

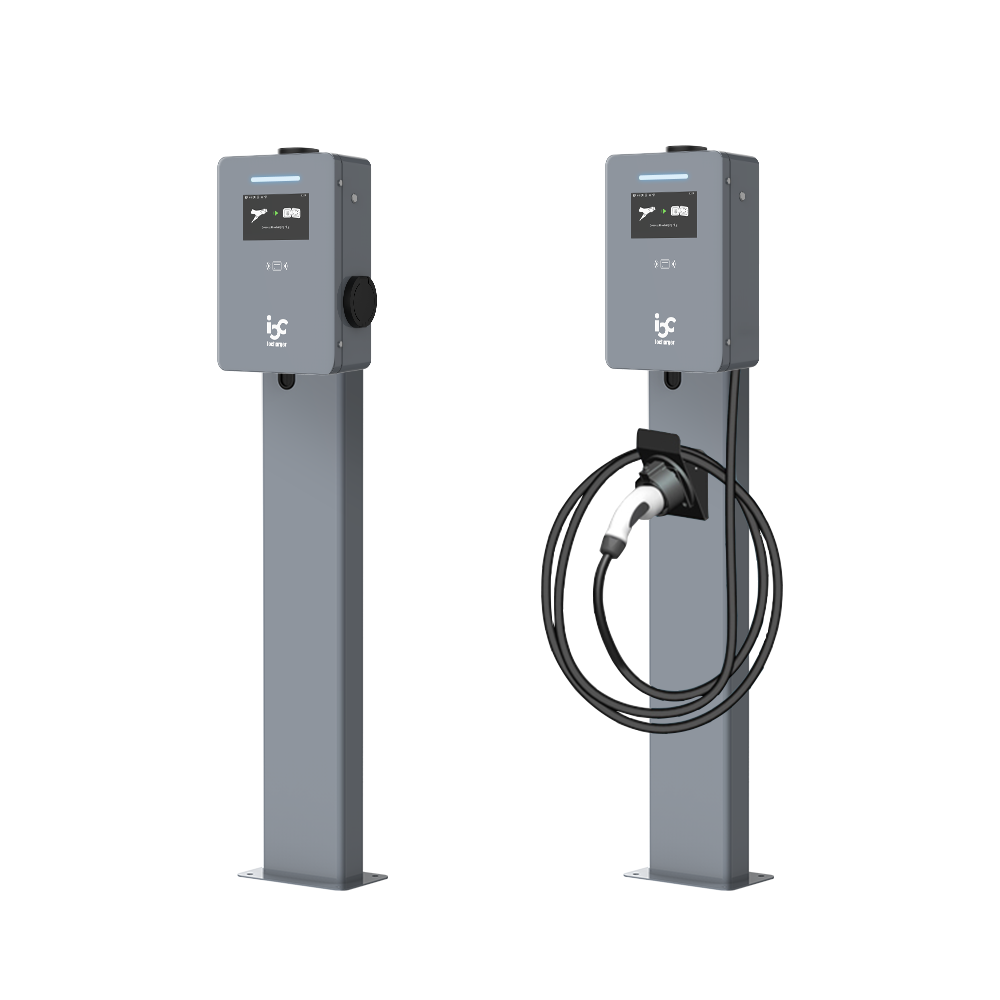

  • Montageart: Wand oder Boden (Sockel wird separat geliefert)

IOCAW12 is especially designed for commercial charging purposes. High protection level & anti-theft design make it perfect for outdoor charging locations like Gas stations, Parking lots, Street corners, etc.

Hauptmerkmale:
● Compatible with all cars and power grids
● RCCB Type-B
● MID Meter
● 7” LCD display for easy and user-friendly operation
● Intelligent Ethernet, Cellular, WLAN Switching
● Flexible output current / power configuration
● Smart dynamic load balancing support
● User authentication via RFID or Mobile App
● User friendly web portal for charger configuration
● Remote control and monitoring

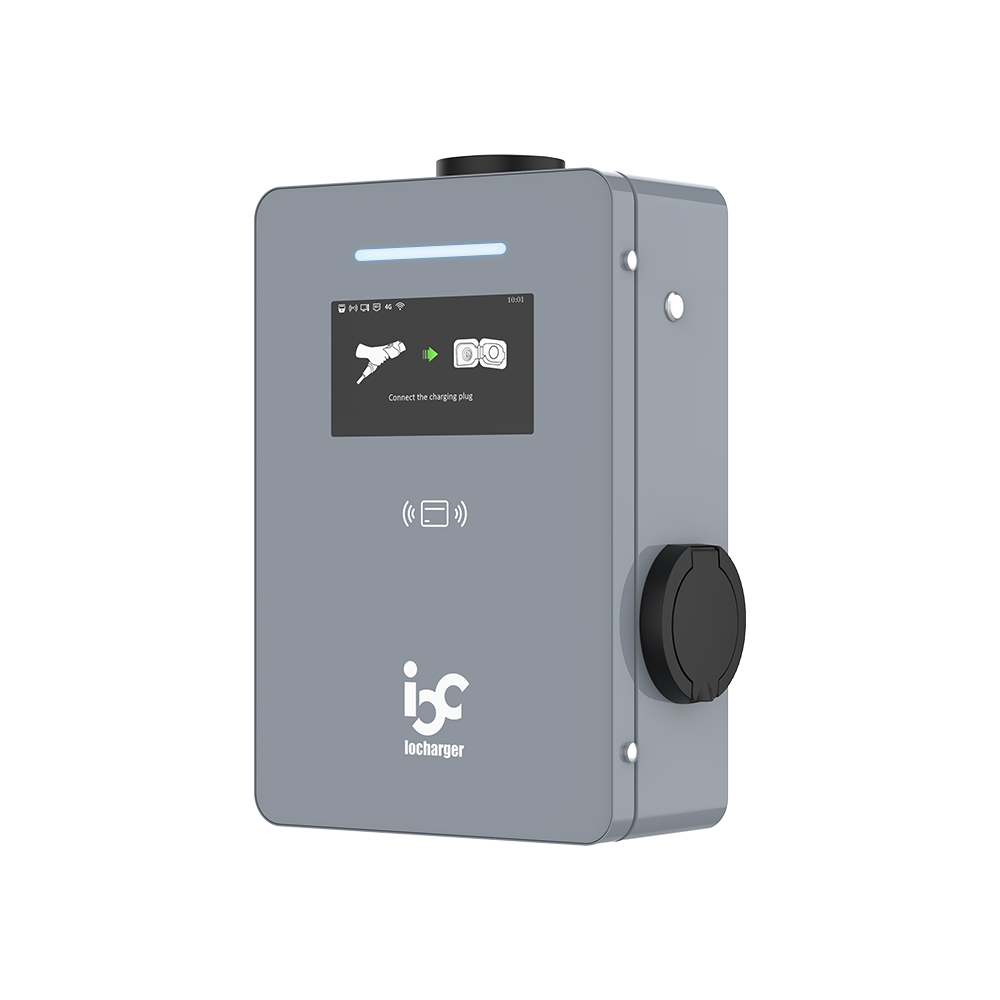

ICOAW12 EV-Ladegerät
ICOAW12 EV-Ladegerät

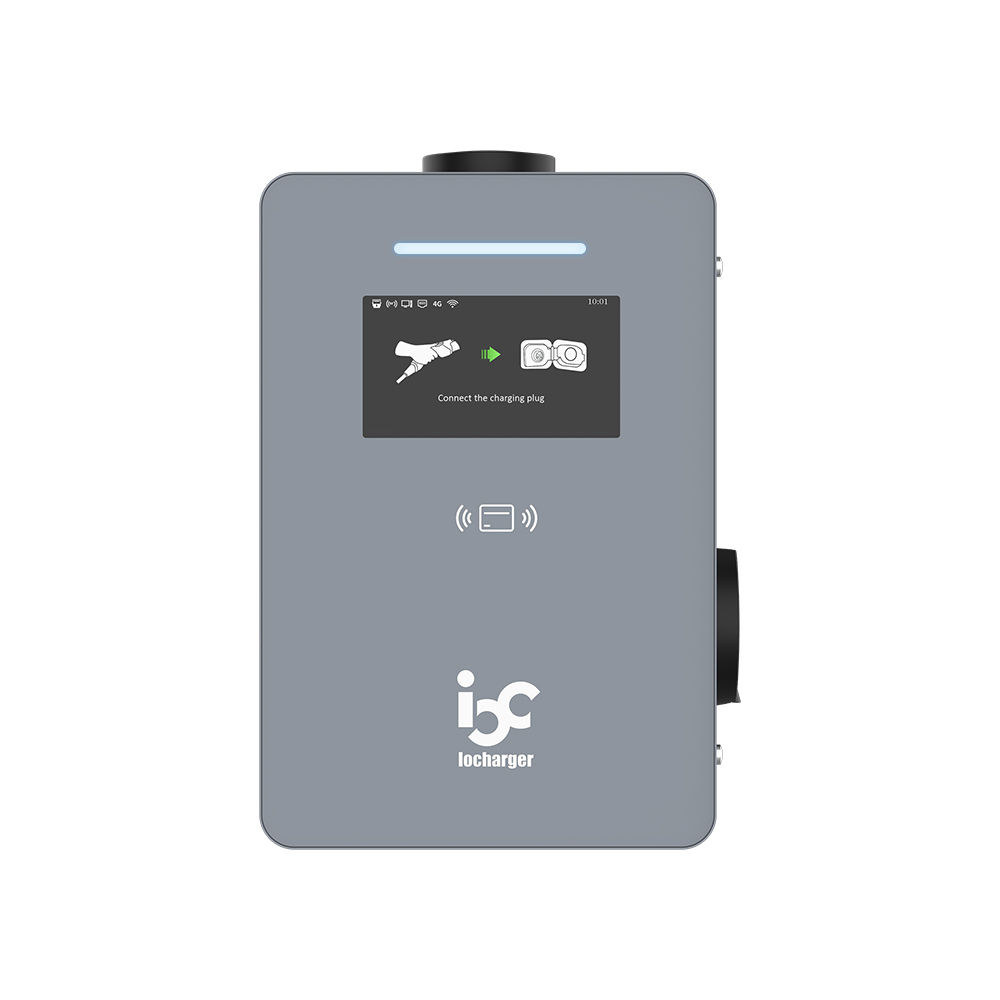

7′ LCD display

The 7-inch screen displays the status of ev charger, charging status, QR code, prompt charging and other contents in real time. In addition, it also plays videos, pictures, texts, sounds and other functions, which means that the exposure effect of charging station can be improved.

OCPP compliant

With its fully compliance of OCPP 1.6J and OCPP 2.0 profiles, which means you can easily connect it any 3rd party OCPP CCMS for remote monitoring and management.

Dynamic load balancing support

Load balancing feature of IOCAW12 chargers makes it perfect for commercial use. It ensures that users can dynamically balance all available power at the charging station, including solar, battery systems, and circuits that never overload. And all the equipment is in normal operation to minimize power consumption.

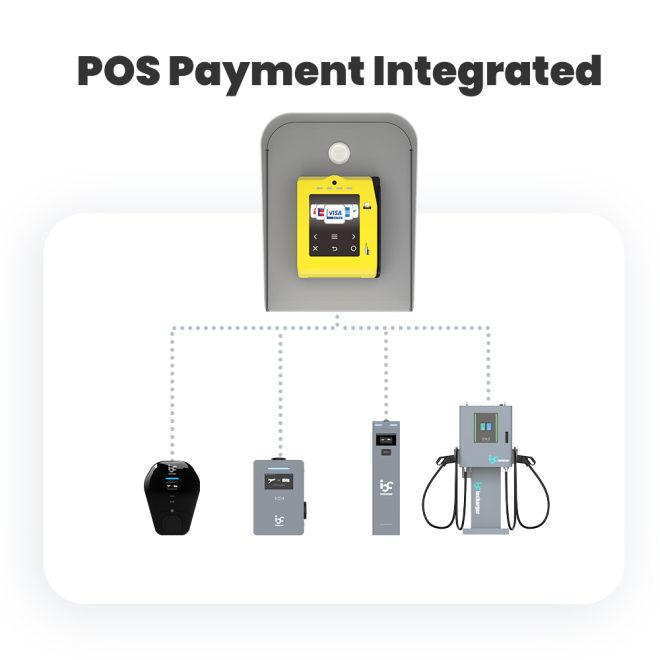

Support multi payment methods

IOCAW12 as a commercial charger supports multiple payment methods to meet users’ different payment requirements. Paypal, Credit Card pay with mobile App and NFC payment supported. With iocharger’s Kiosk Gateway, direct credit card swiping payment is also supported.
